Alumil Supreme · Main entrance doors

SD115

SD115 by Alumil

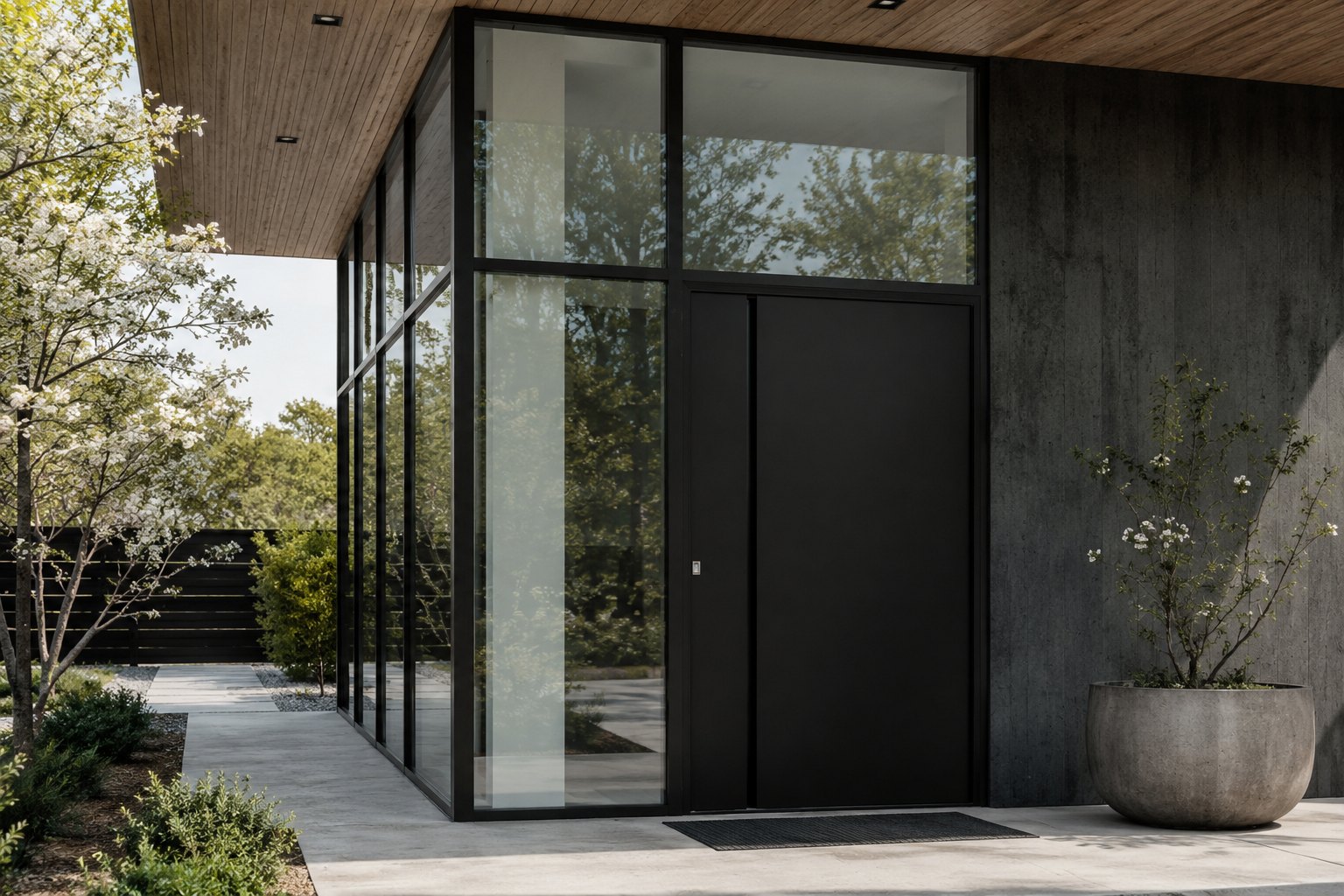

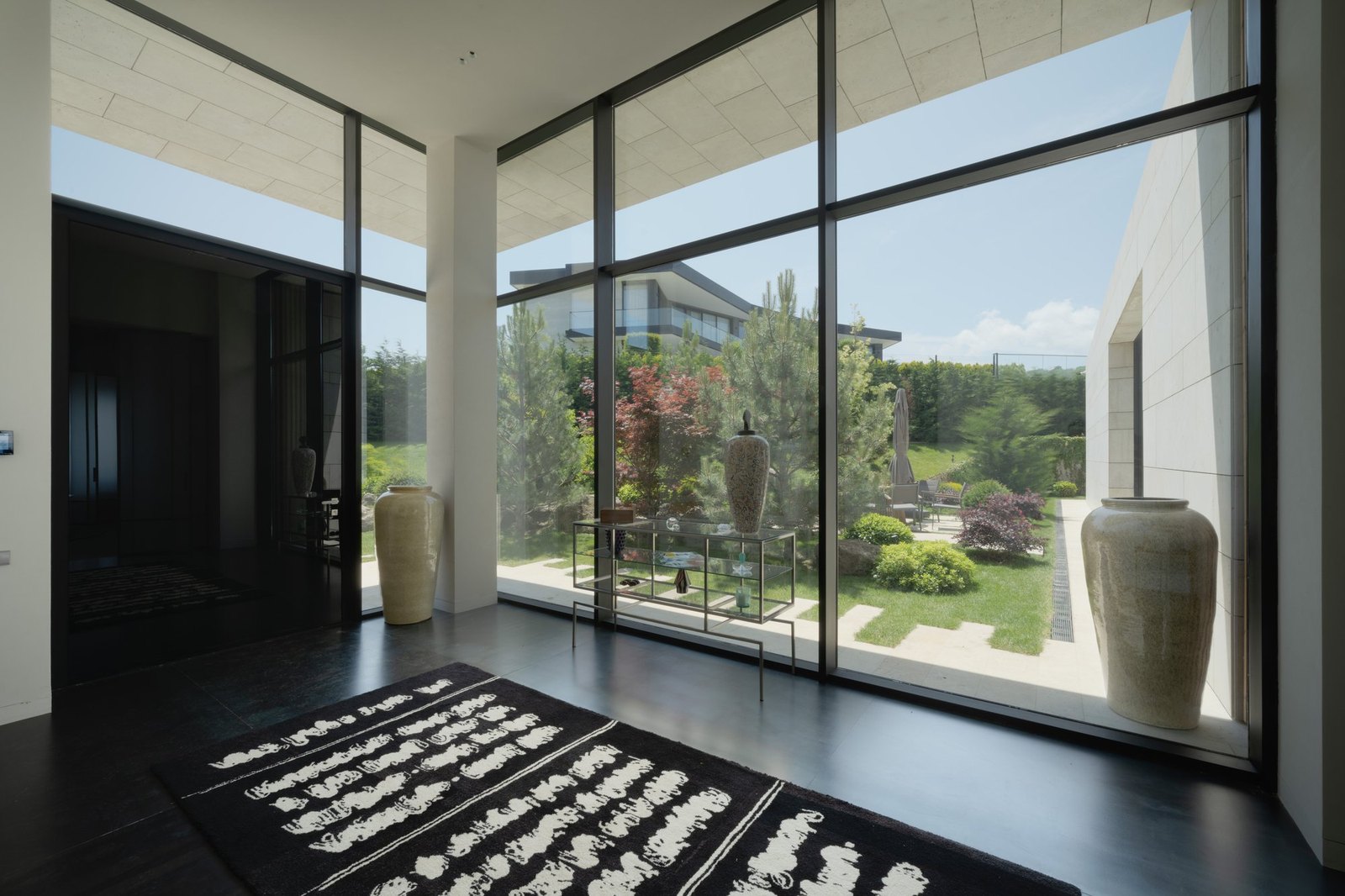

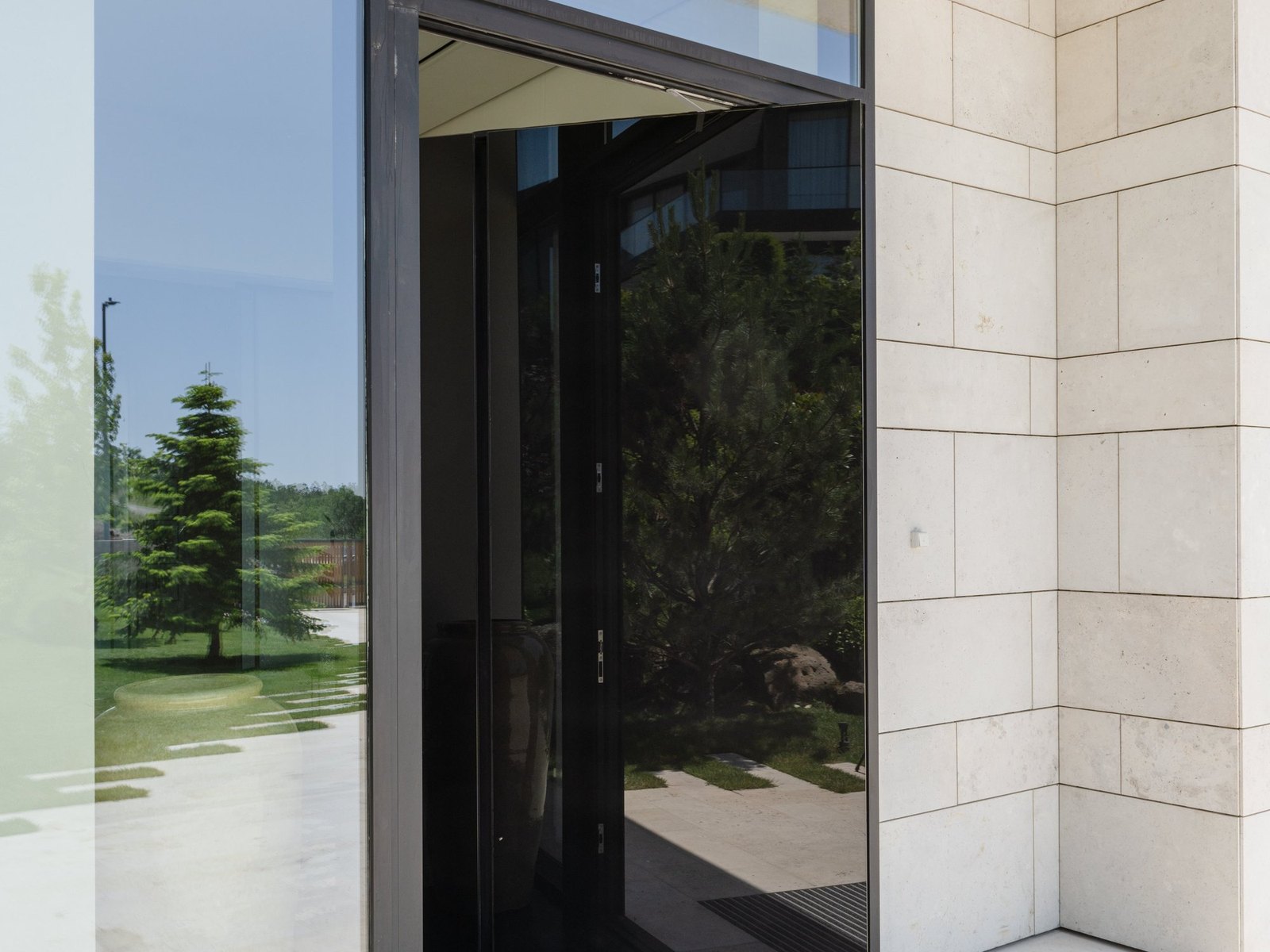

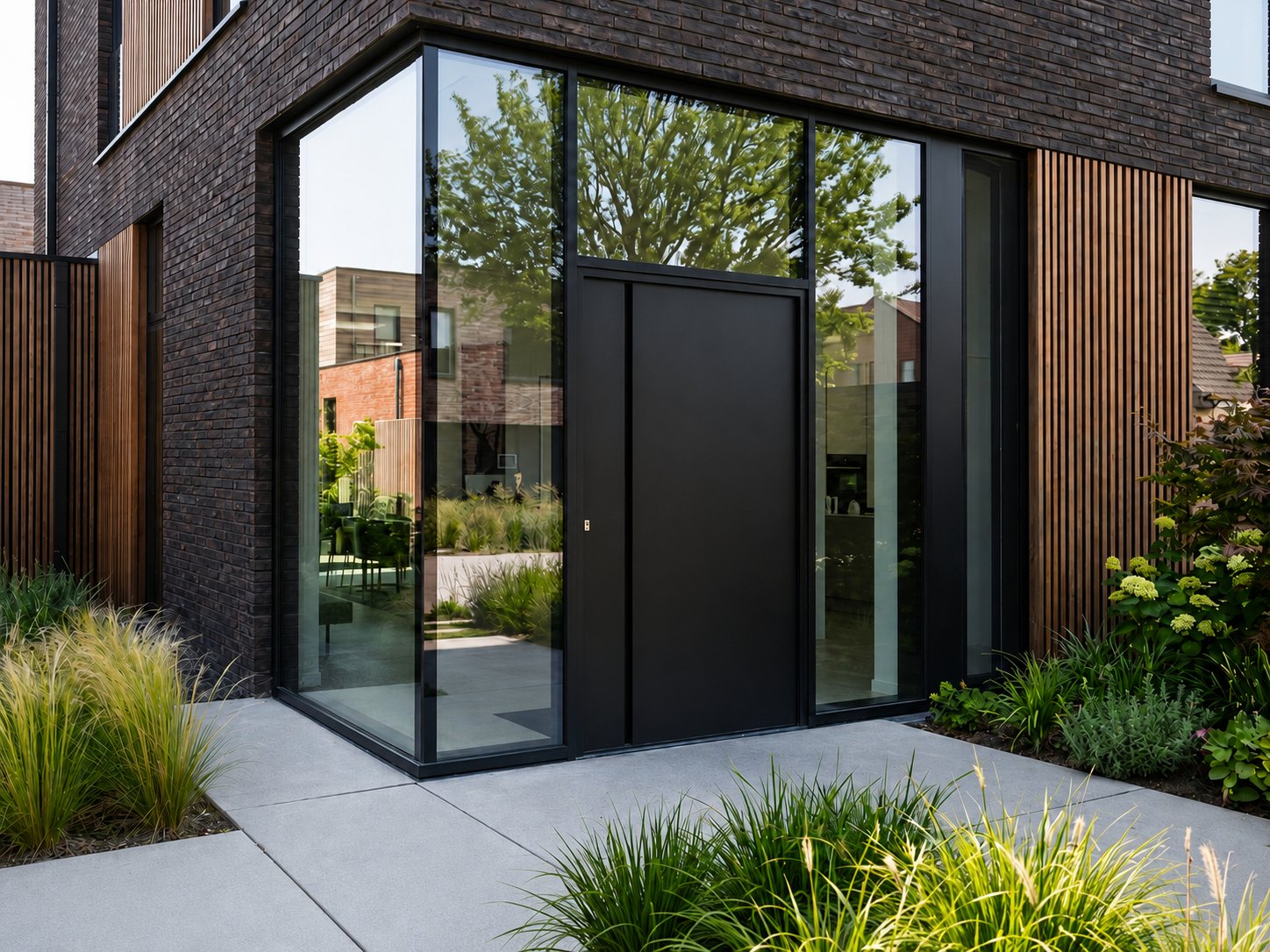

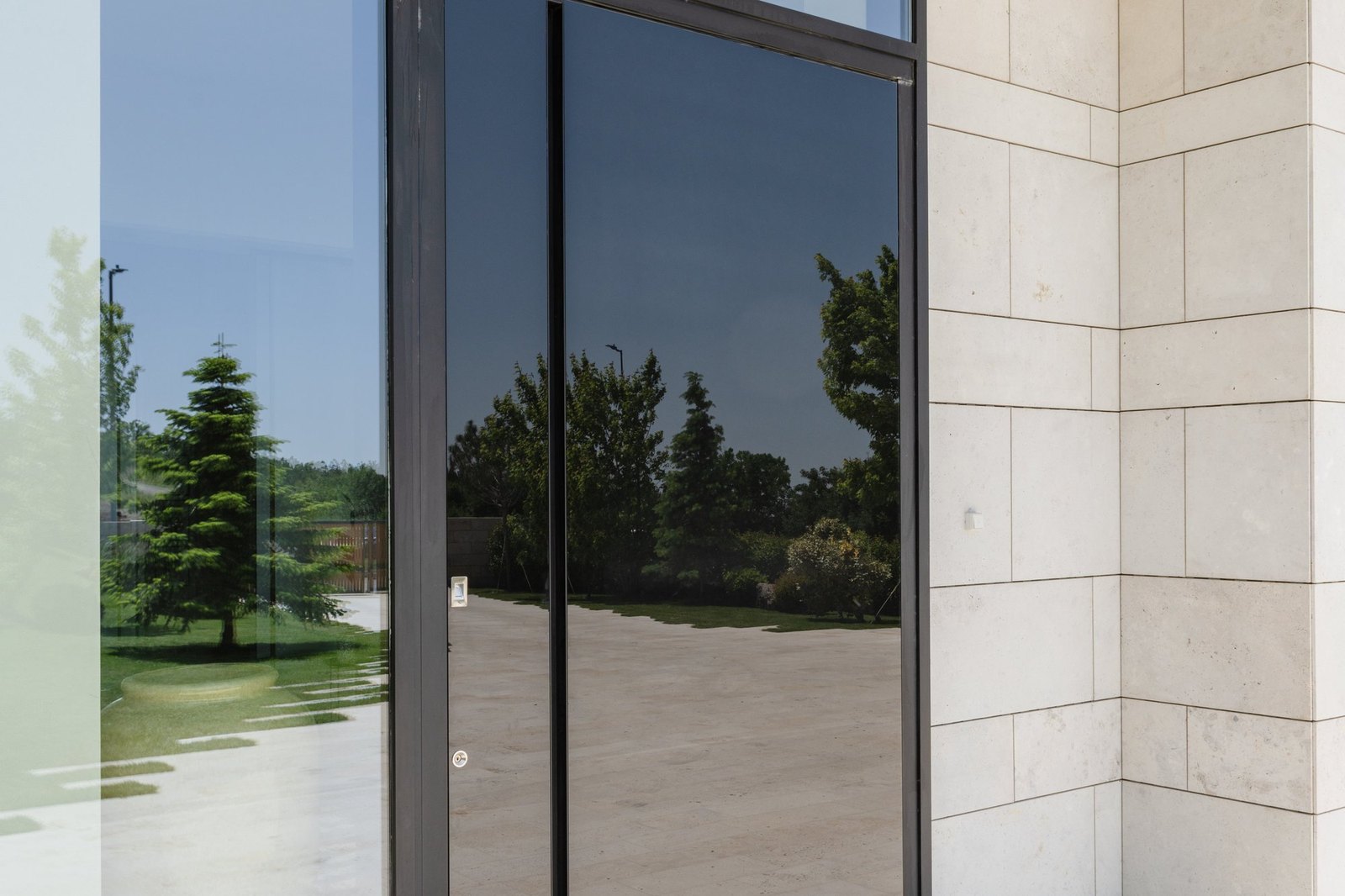

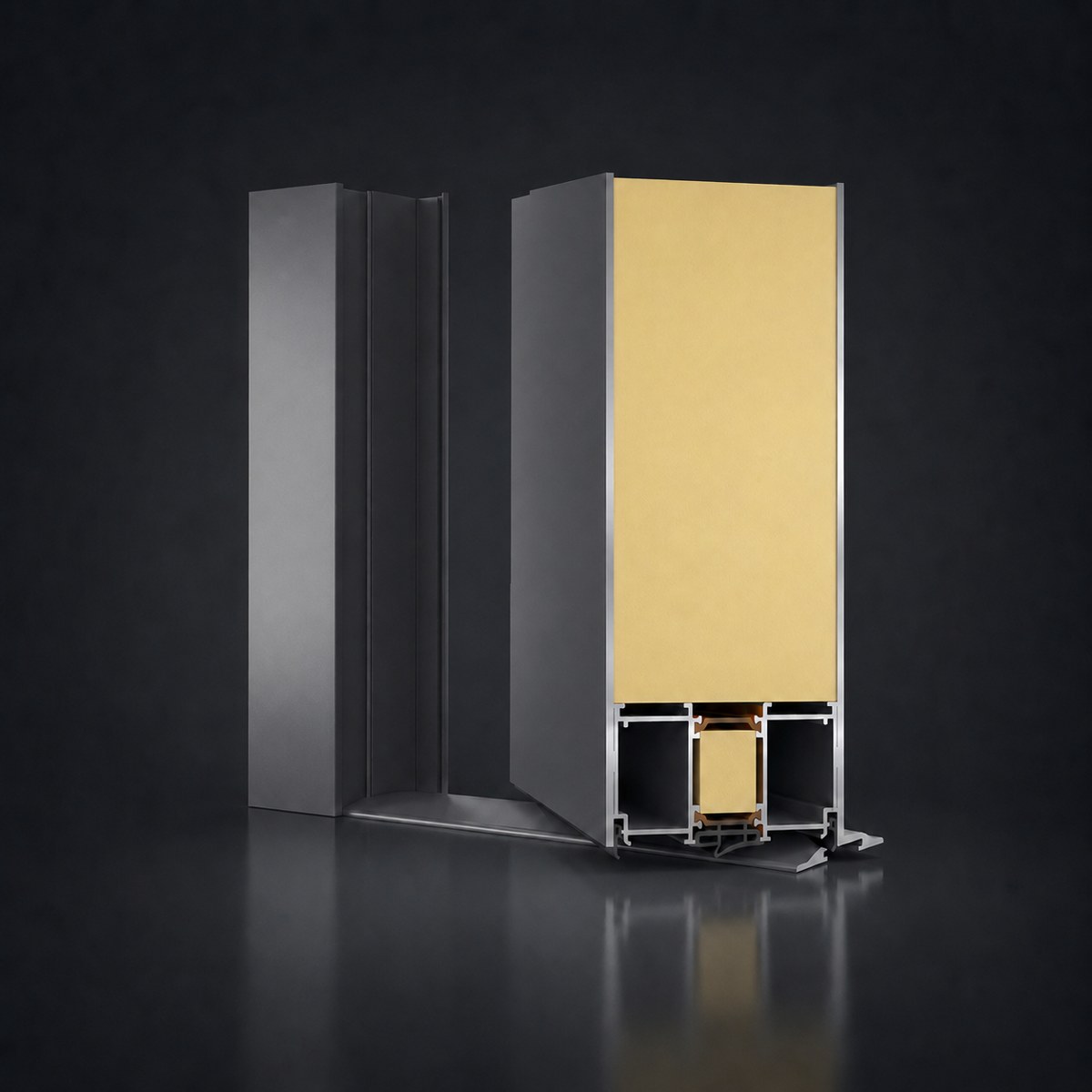

SD115 reference photo SD115 reference photo SD115 reference photo SD115 reference photo SD115 reference photo SD115 profile cross-section

About this system

A pivot entrance door system for large-format leaves, with aligned surfaces, an adjustable pivot mechanism, RC3 burglar resistance, and a 7 mm low threshold.

System typePivot entrance door
Suitable applicationsGrand, minimal-look entrances
Request a quote

Technical characteristics

Frame width115 mm
Sash width115 mm
Max. sash weight250 kg
Panel thickness115 / 120.5 / 126 mm
Threshold7 mm, low access
InsulationPolyamides 34 mm, energy bars, insulation foam

Performance

Burglar resistance (EN 1627-1630)RC3
Thermal insulation (EN ISO 10077-2)Ud 0.7 W/m²K*
