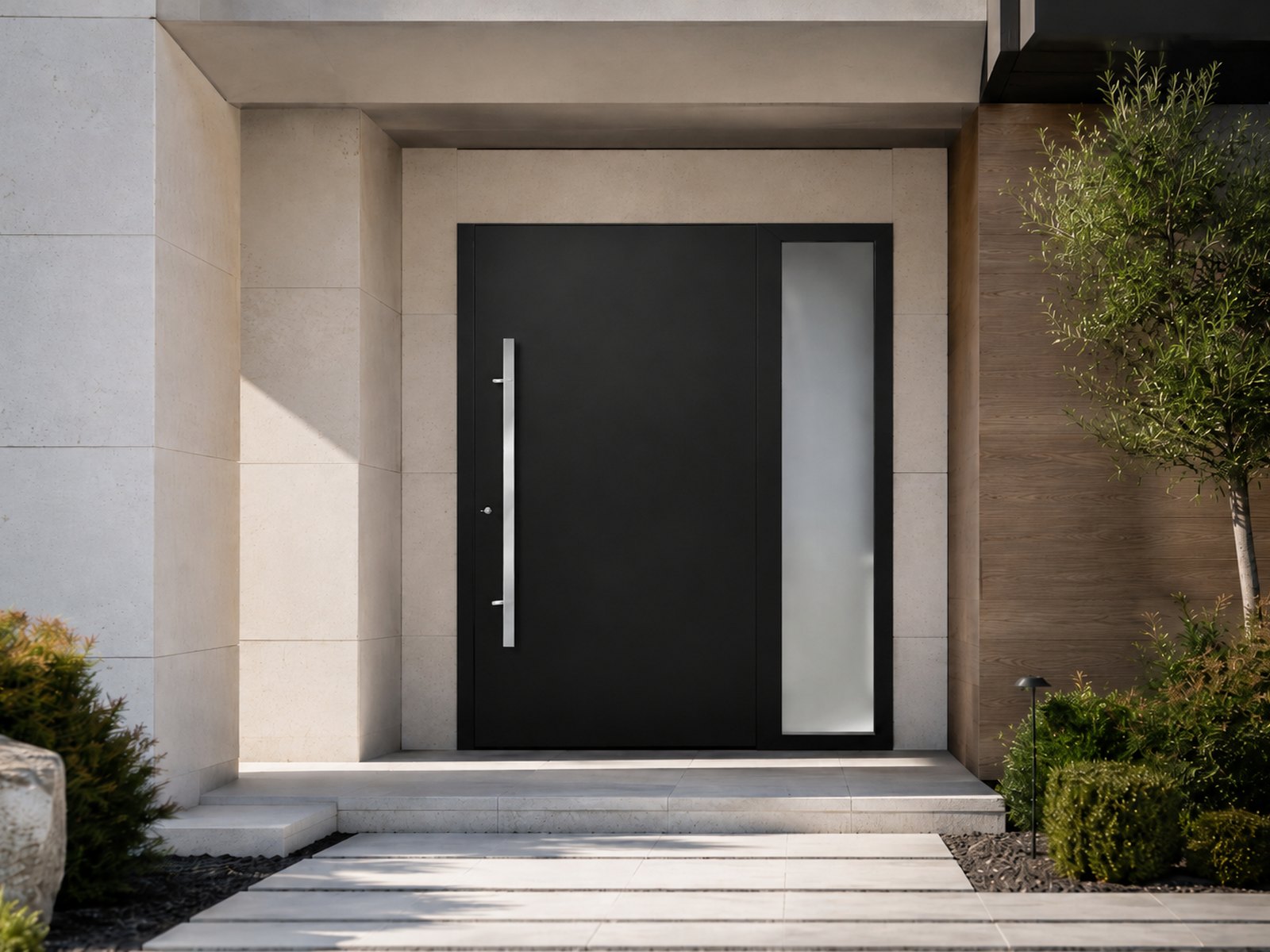

Alumil Supreme · Main entrance doors

SD95

Name: Alumil SD95
Brand: Alumil
SKU: SD95
Availability: InStock

About this system

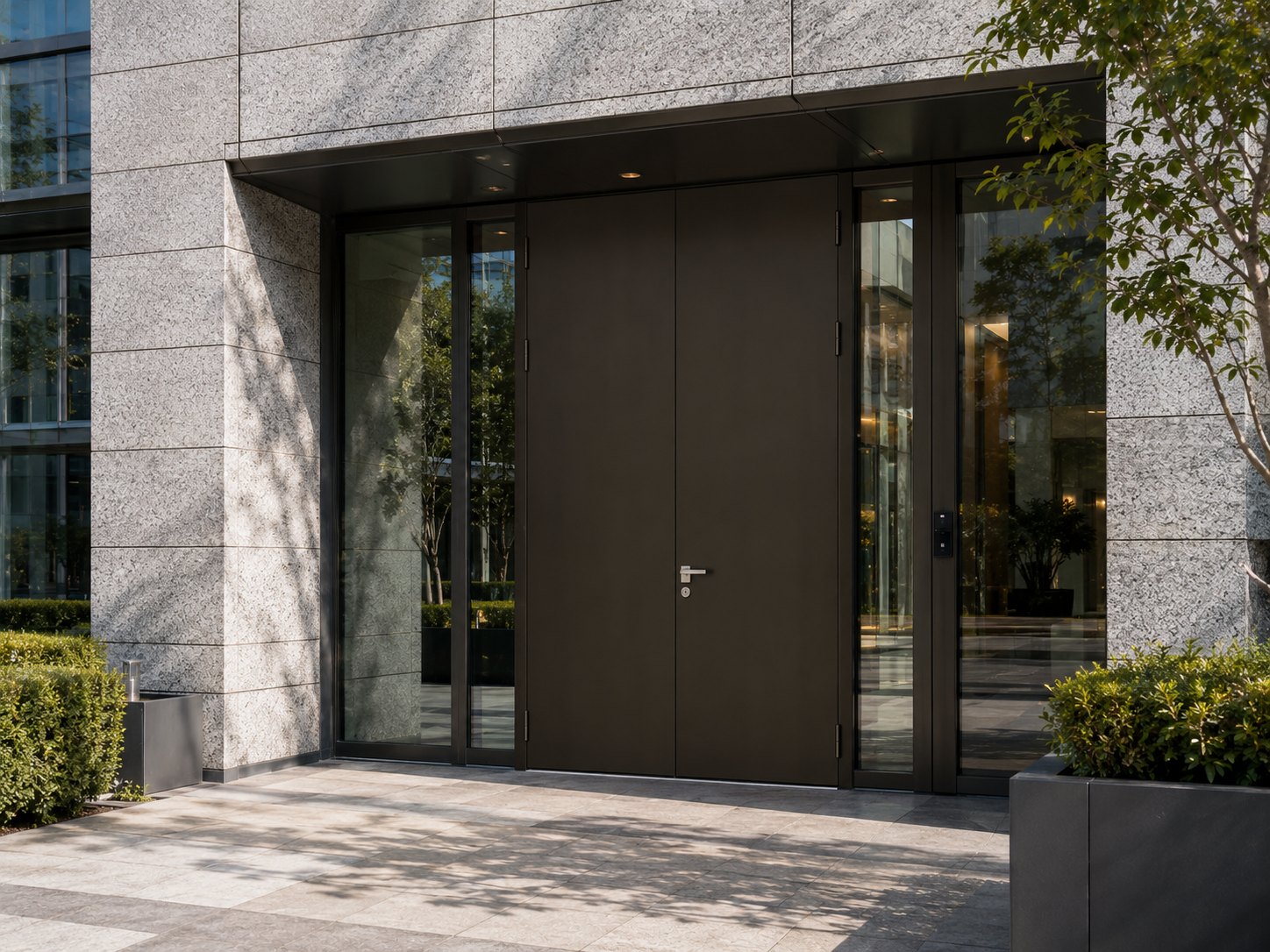

A thermally insulated entrance door system with flat, aligned profiles, aluminum panel or glazed infills, and three sealing levels for watertightness.

System typeEntrance door

Suitable applicationsHigh-security entrances with flexible infill

SD95 Brochure

Request a quote

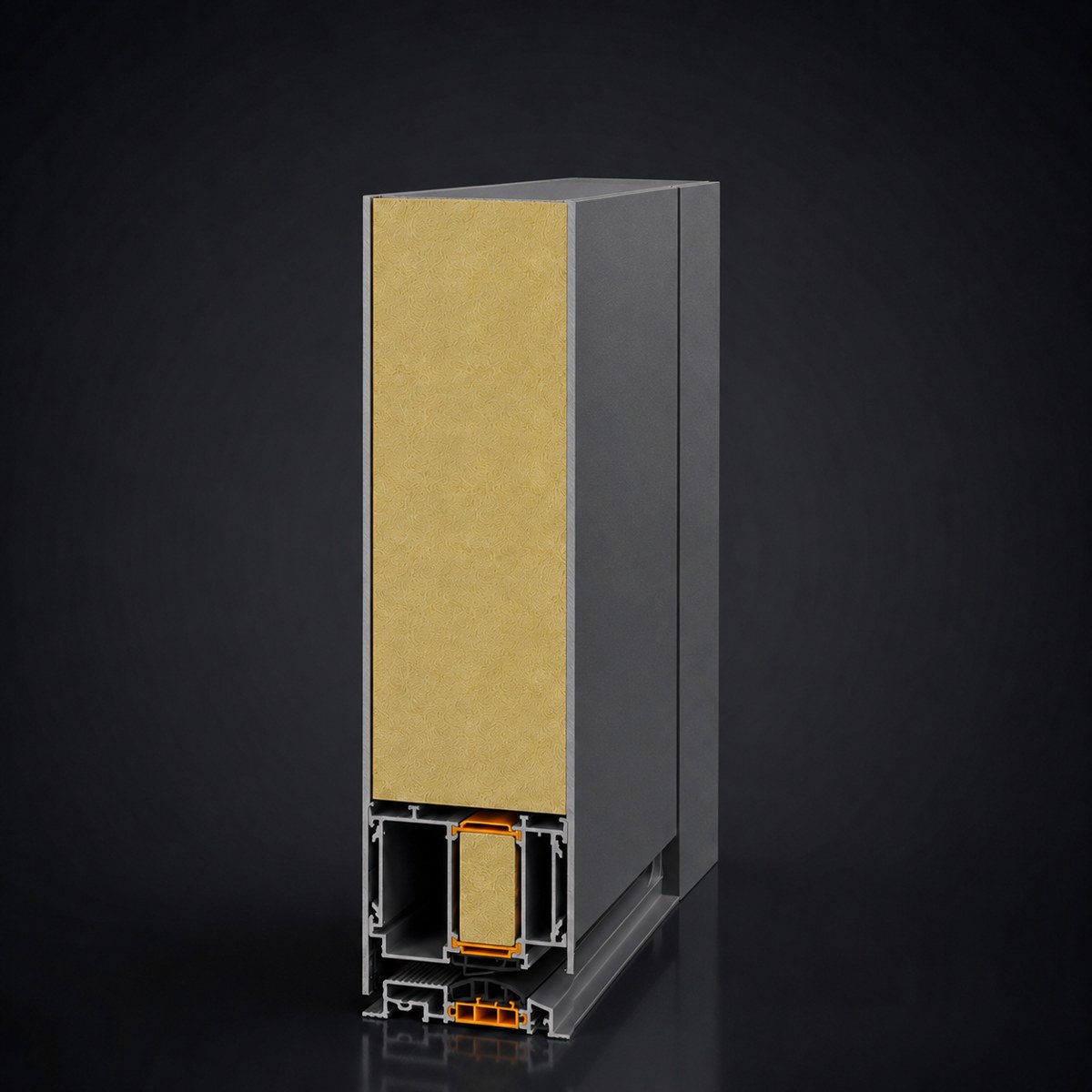

Technical characteristics

Minimum visible width161.4 mm (106.4 mm at T-profile)

Frame depth95 mm

Sash depth95 mm

Max. sash weight180 kg

Glass thickness24 – 54 mm

InsulationPolyamides 34 mm, Kooltherm, PE insulation foam

Performance

Air permeability (EN 12207)Class 4

Watertightness (EN 12208)Class 3A

Wind load resistance (EN 12210, EN 12211)Class C5/B5

Burglar resistance (EN 1627-1630)RC3

Thermal insulation (EN 10077-2)Ud 0.75 W/m²K*

Similar systems

Alumil Smartia

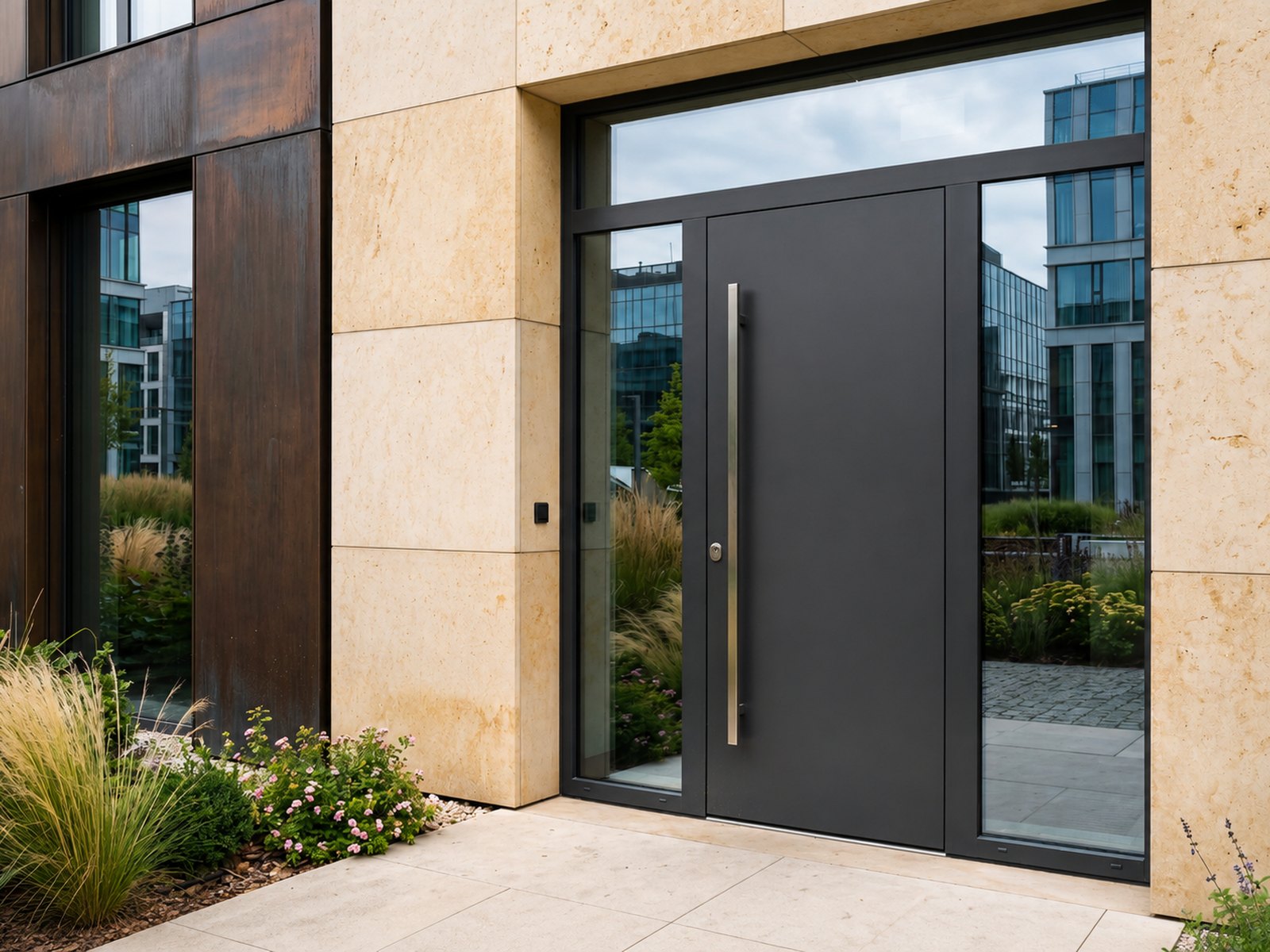

MD67

Frame depth 67 mm

Flush-panel entrance door with panel or glazed infill.

Alumil Supreme

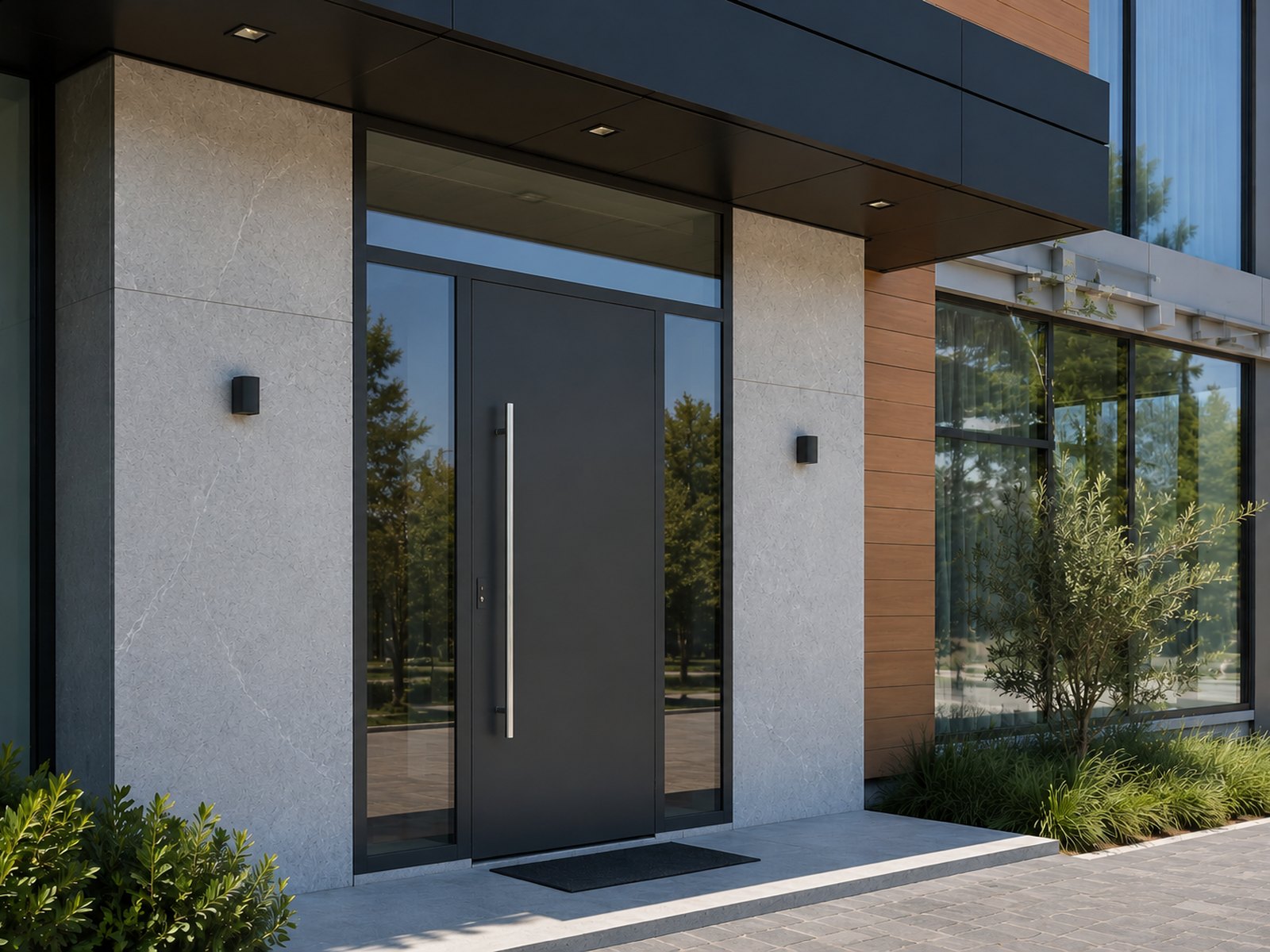

SD77

Frame depth 77 mm

Flush-panel entrance system with an emphasis on security.

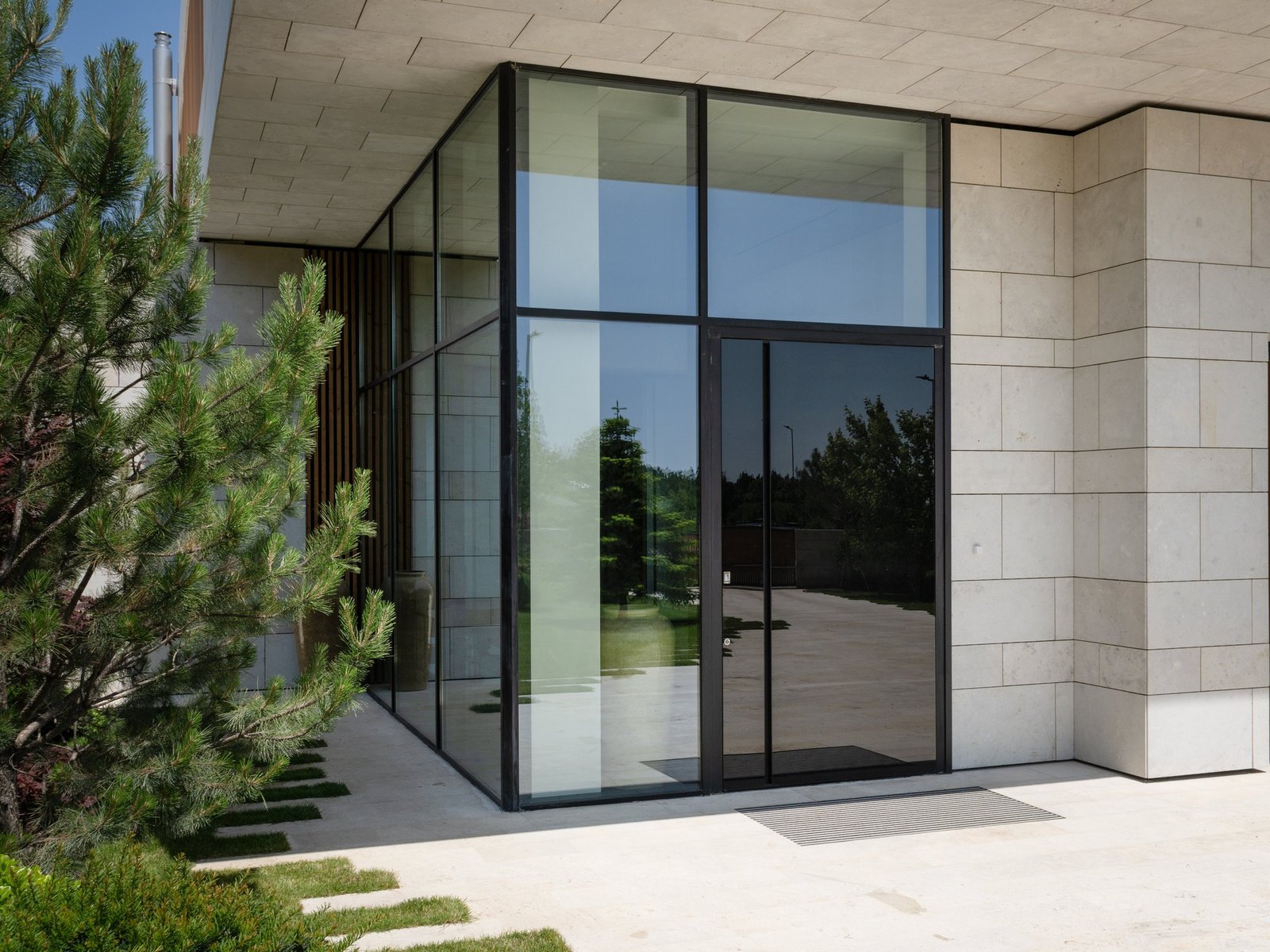

Alumil Supreme
