Alumil Smartia · Main entrance doors

MD67

Name: Alumil MD67
Brand: Alumil
SKU: MD67
Availability: InStock

About this system

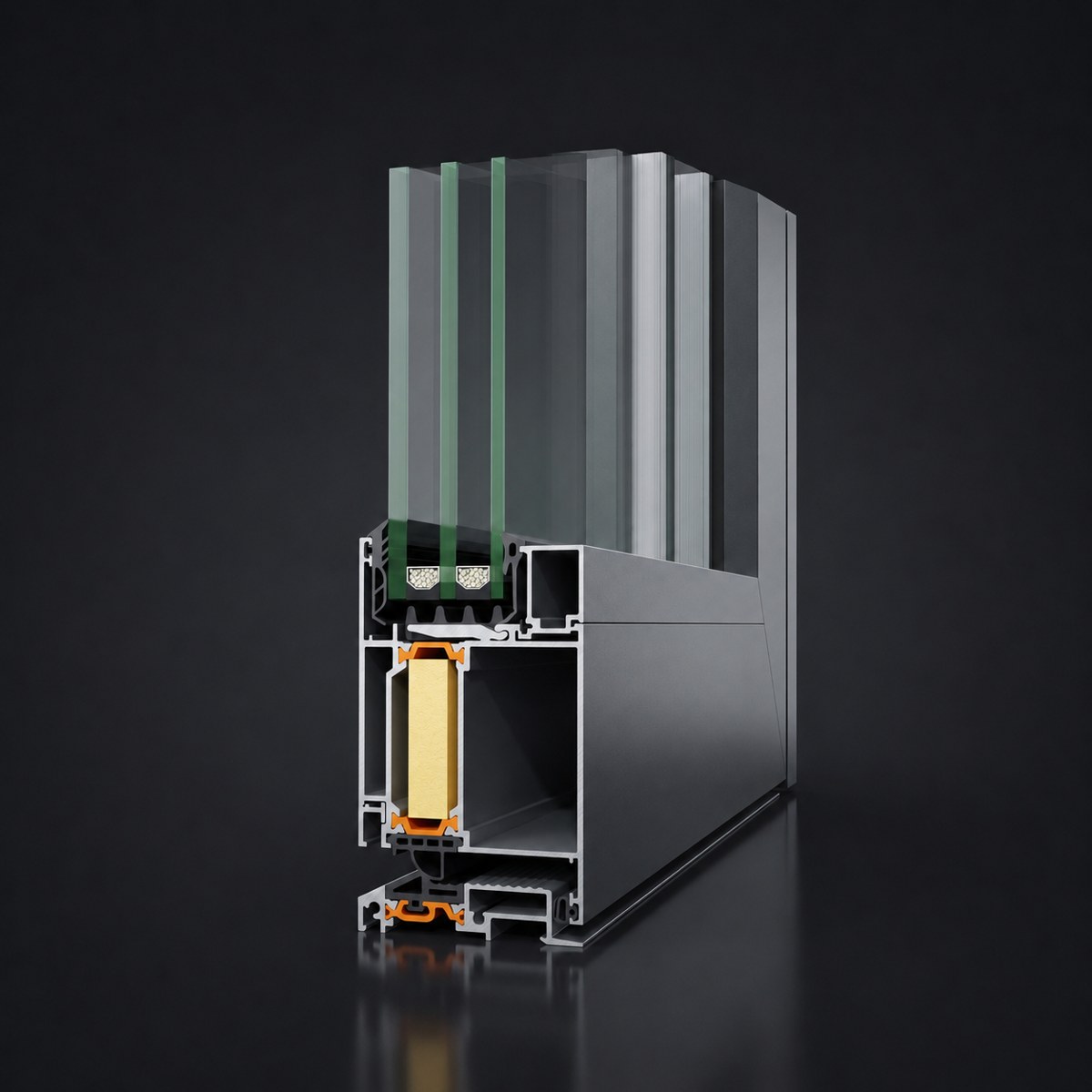

A thermally insulated main-entrance system with aluminum panel or glazed infills, a low slip-resistant threshold, and an insulated panel aligned with the sash surfaces on both sides.

System typeEntrance door

Suitable applicationsModern residential and office entrances

MD67 Brochure

Request a quote

Technical characteristics

Frame width67 mm

Sash width67 mm

Minimum visible width117 mm (85 mm at T-profile)

Max. sash weight220 kg

Glazing panel23 – 49 mm

Threshold~16 mm, slip-resistant

InsulationPolyamides 20 and 24 mm, insulation foam, Alumil Energy Bar

Performance

Air permeability (EN 12207)Class 4

Watertightness (EN 12208)Class E1350

Wind load resistance (EN 12210)Class C4/B4

Burglar resistance (EN 1627-1630)RC2

Thermal insulation (EN 10077-2)Uf 1.97 – 3.15 W/m²K
