Alumil Supreme · Main entrance doors

SD77

Name: Alumil SD77
Brand: Alumil
SKU: SD77
Availability: InStock

About this system

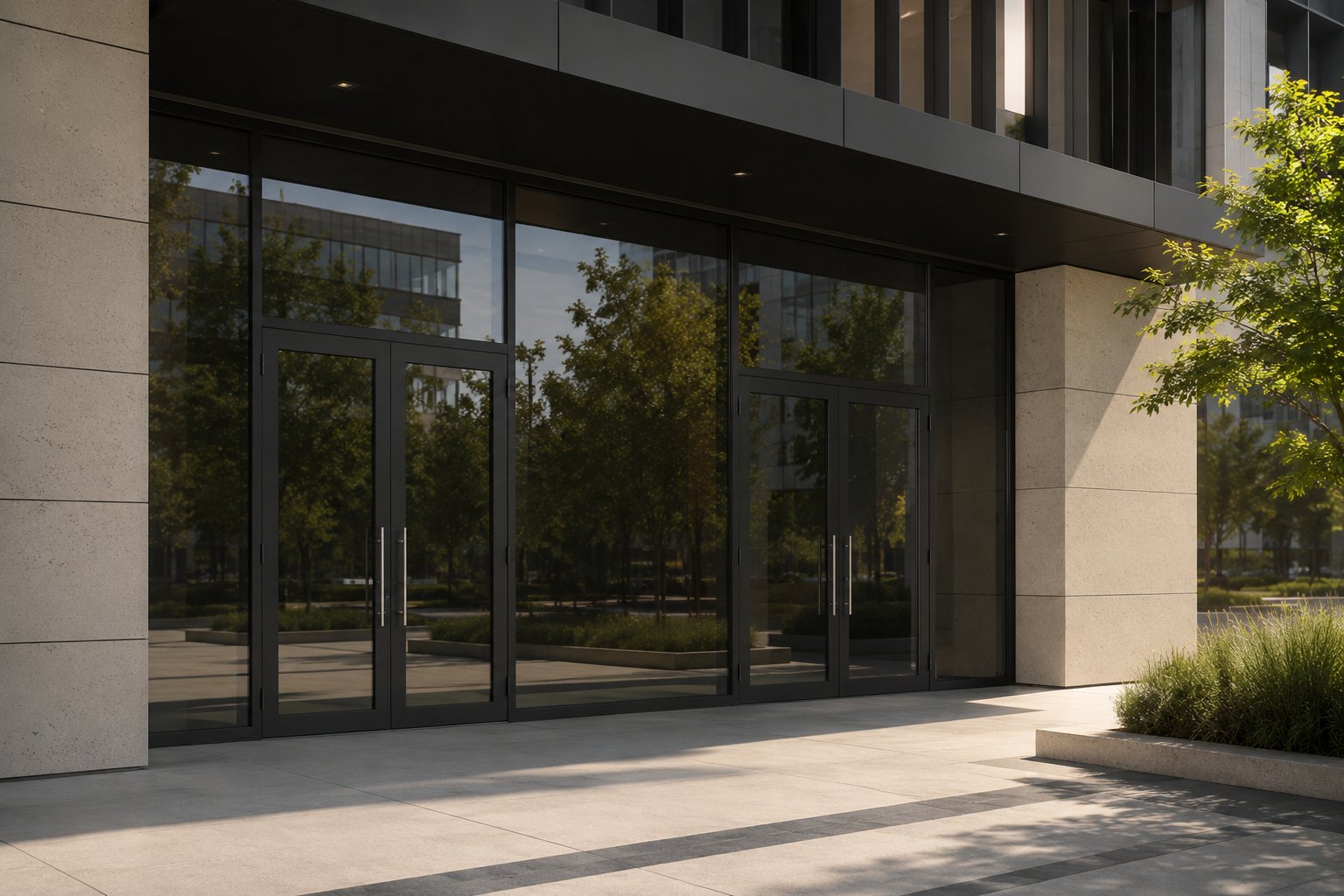

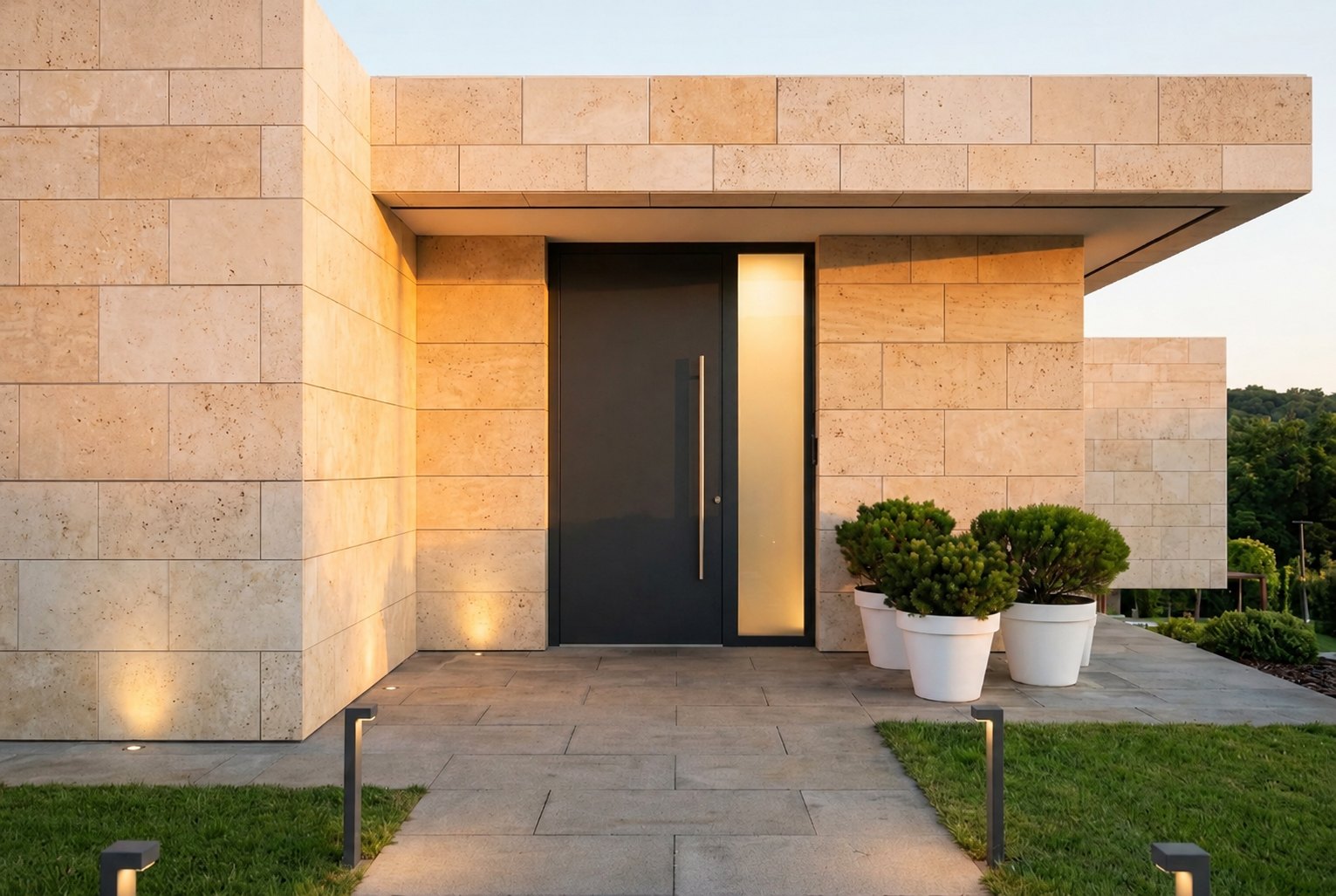

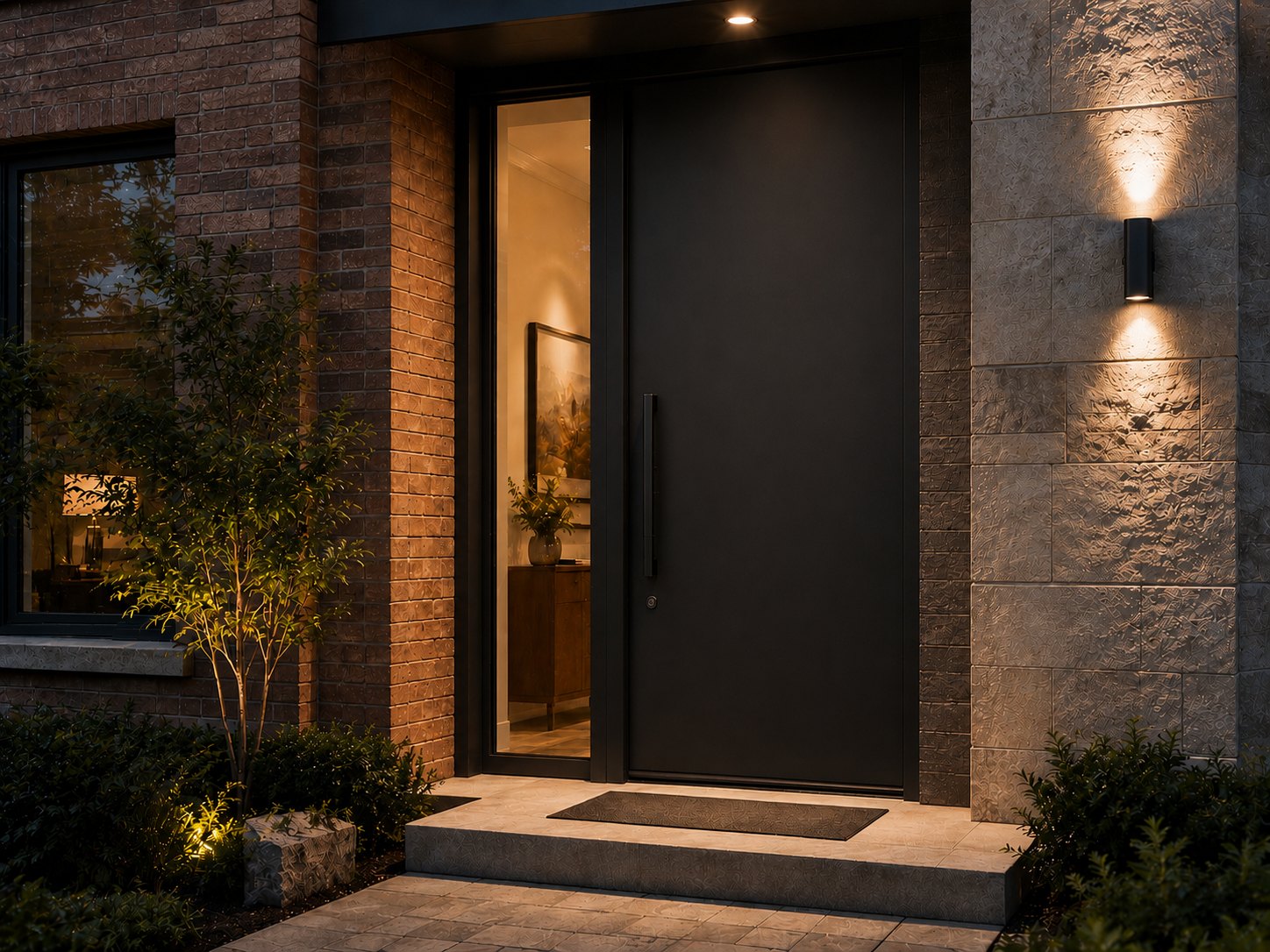

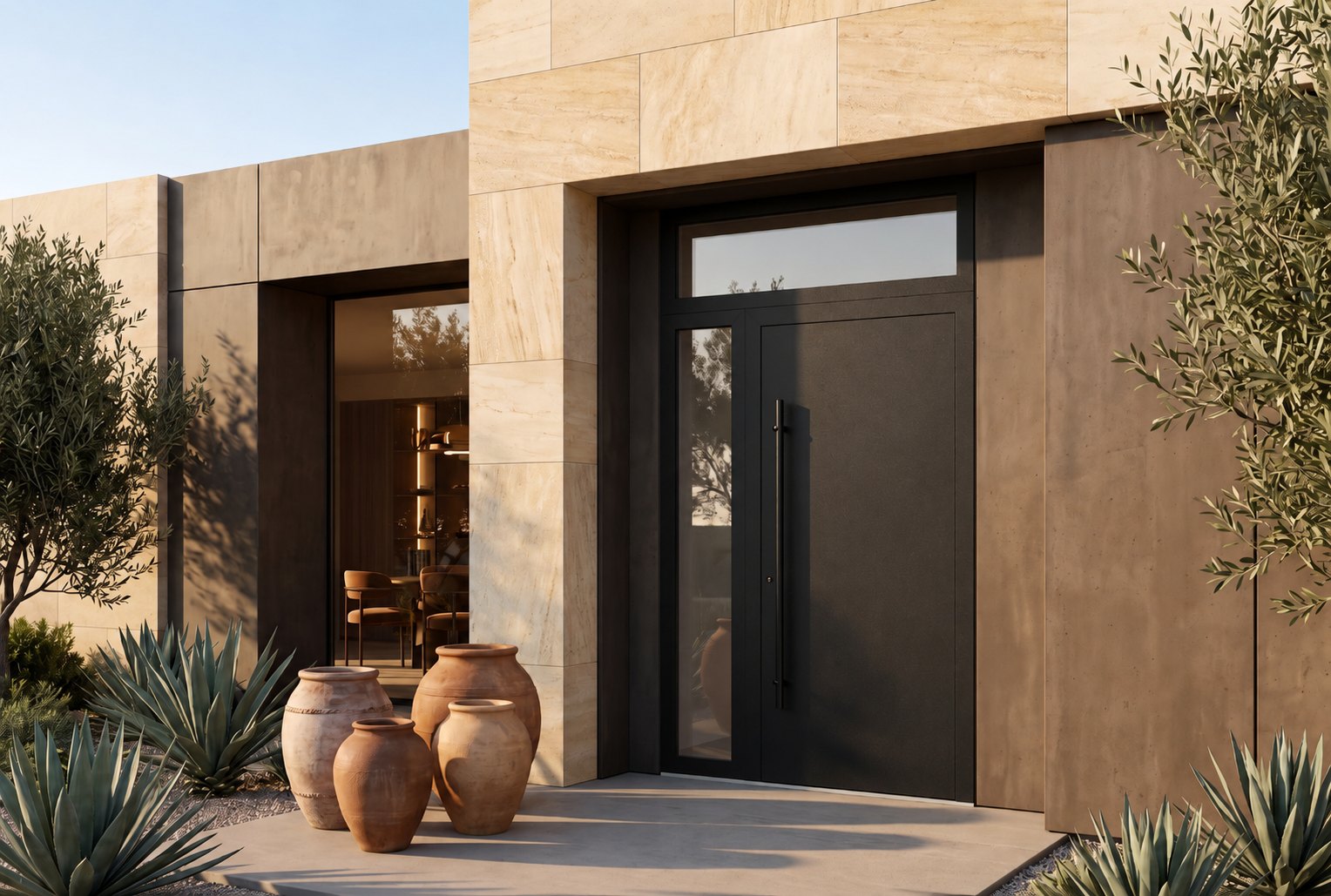

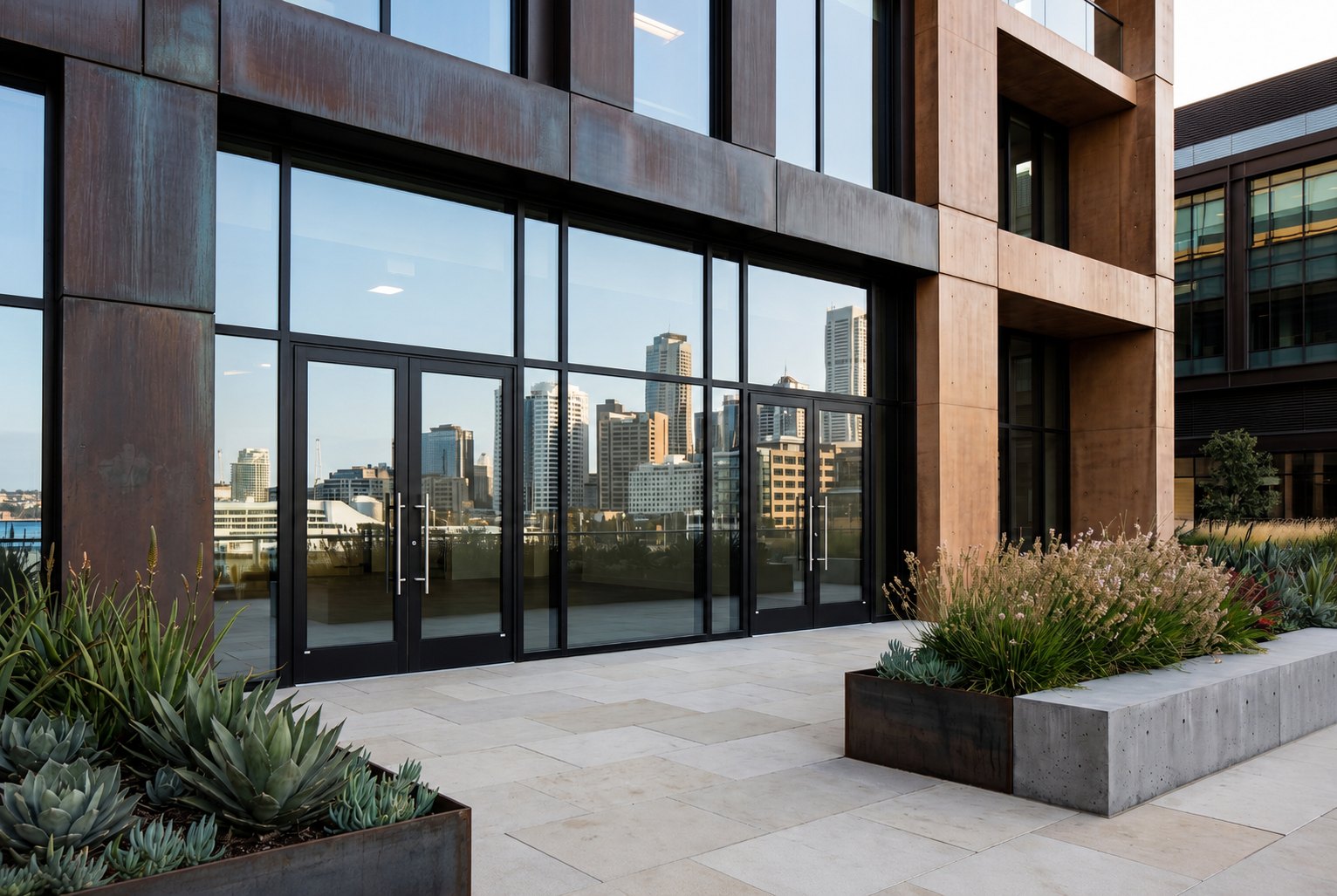

A thermally insulated entrance door system with flat, aligned surfaces and security-focused configurations for residential and commercial applications.

System typeEntrance door

Suitable applicationsHigh-security architectural entrances

SD77 Brochure

Request a quote

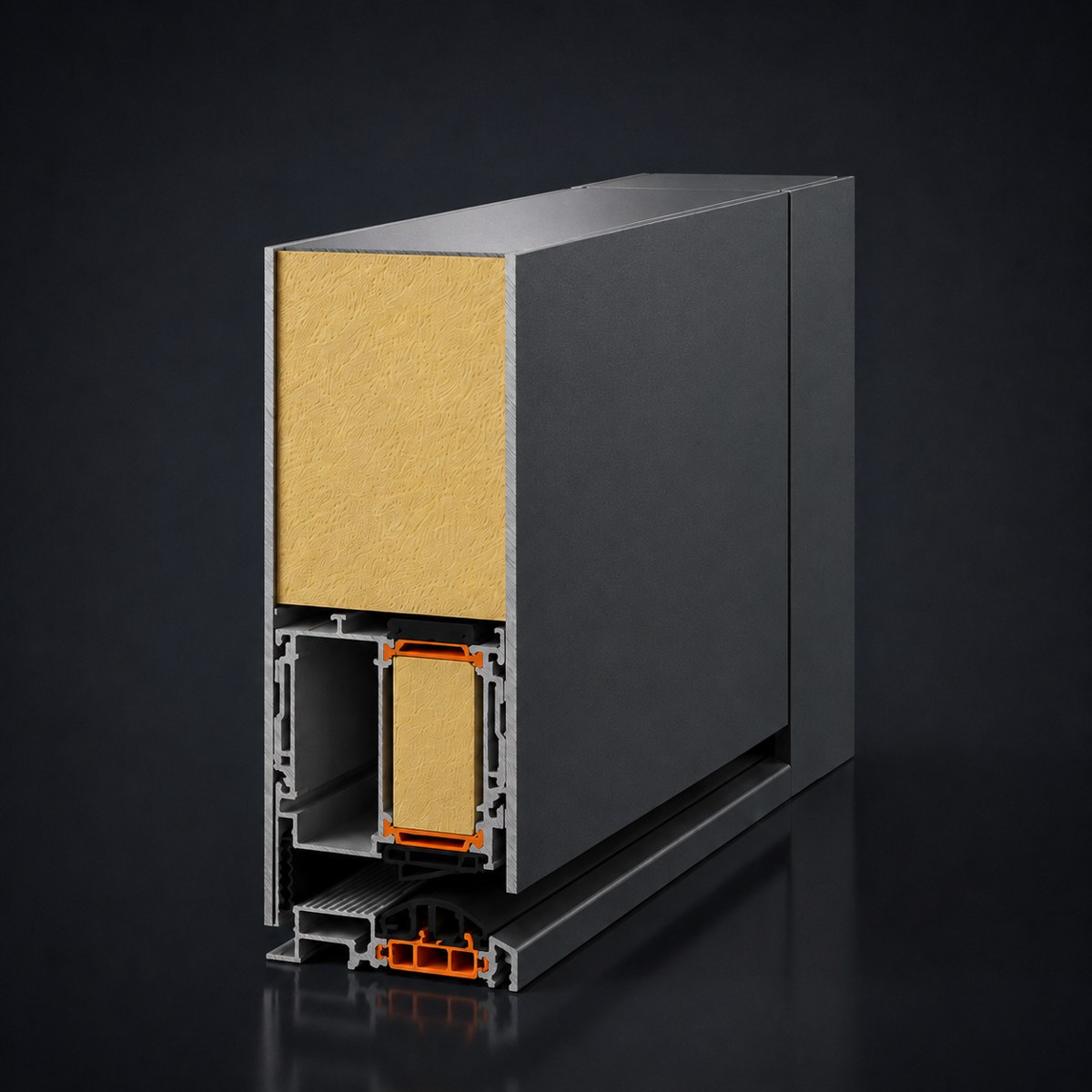

Technical characteristics

Frame depth77 mm

Sash depth77 mm

Minimum visible width154.5 mm (76 mm at T-profile)

Max. sash weight220 kg

Glazing panel23 – 59 mm

Threshold22 mm, slip-resistant

InsulationPolyamides 40 mm, PE insulation foam, Alumil NRG Bar

Performance

Air permeability (EN 12207)Class 4

Watertightness (EN 12208)Class 7A

Wind load resistance (EN 12210)Class C4/B4

Burglar resistance (EN 1627-1630)RC2

Thermal insulation (EN 10077-2)Ud 0.86 W/m²K*
