Alumil Smartia · Window and door systems

S67

Name: Alumil S67
Brand: Alumil
SKU: S67
Availability: InStock

About this system

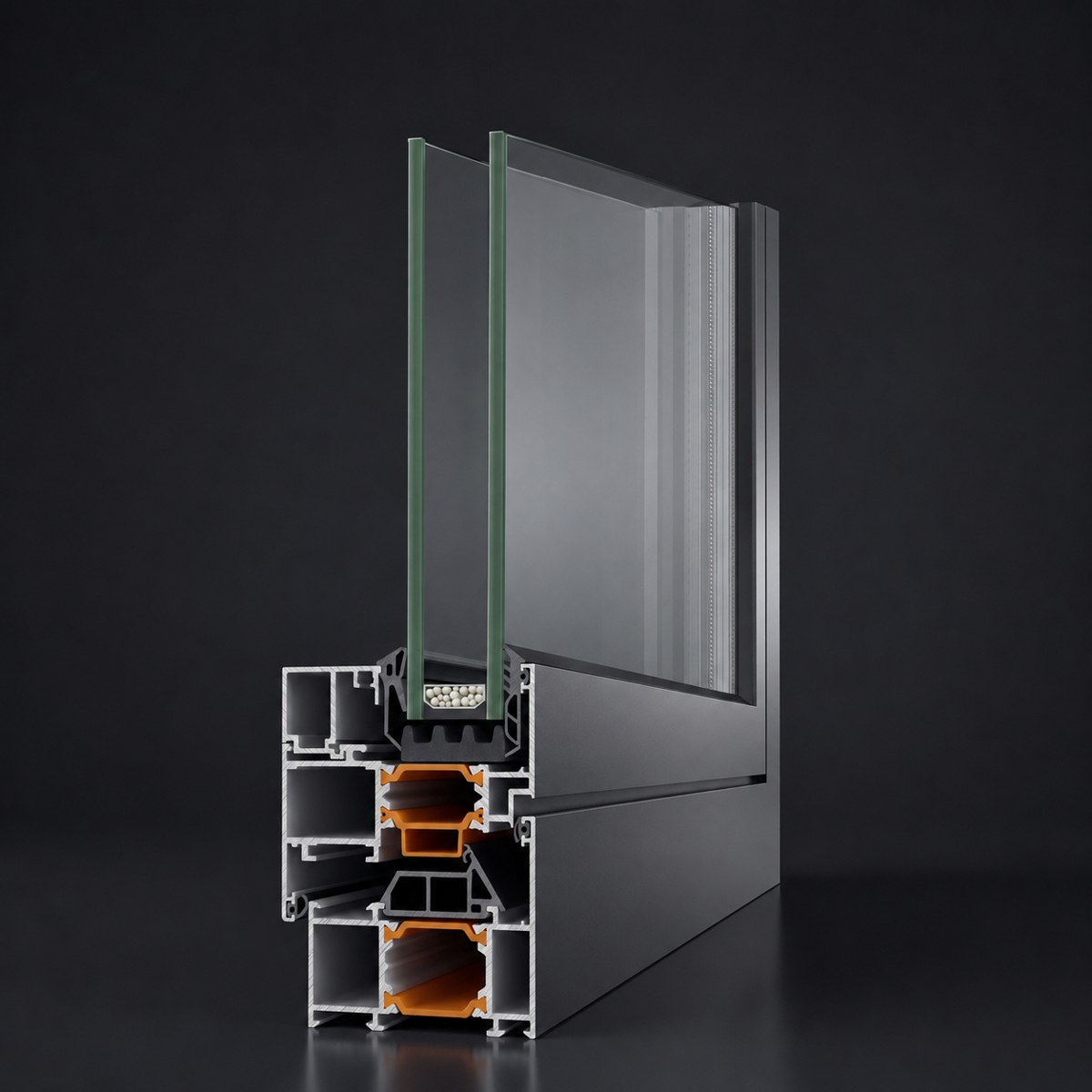

A thermally insulated hinged and tilt-and-turn system available with flat or curved profiles. S67 combines thermal insulation with tested air permeability, watertightness, and wind-load resistance.

System typeHinged, tilt and turn

Suitable applicationsFlat or curved facades, high wind/water exposure

S67 Brochure

Request a quote

Technical characteristics

Visible aluminum face width93 mm

Frame width67 mm

Frame height51 mm

Sash width75 mm

Sash height73 mm

Max. sash weight150 kg

Glazingup to 58 mm

InsulationPolyamide 30 mm width

Performance

Air permeability (EN 1026, EN 12207)Class 4

Watertightness (EN 1027, EN 12208)Class E900, E1200

Wind load resistance (EN 12210, EN 12211)Class C4/B4

Burglar resistance (EN 1627-1630)RC3

Sound reduction (EN 14351, EN 717)Rw (C;Ctr) = 45 (-2;-6) dB

Thermal insulation (EN 10077-2)Uf 1.5 – 2.6 W/m²K
