Alumil Supreme · Window and door systems

S91

Name: Alumil S91
Brand: Alumil
SKU: S91
Availability: InStock

About this system

A Passive House Institute-certified window system for buildings with low-energy and passive-house requirements, combining high thermal insulation with tested watertightness and sound reduction.

System typeHinged, tilt and turn

Suitable applicationsPassive houses, heavy-duty constructions

S91 Brochure

Request a quote

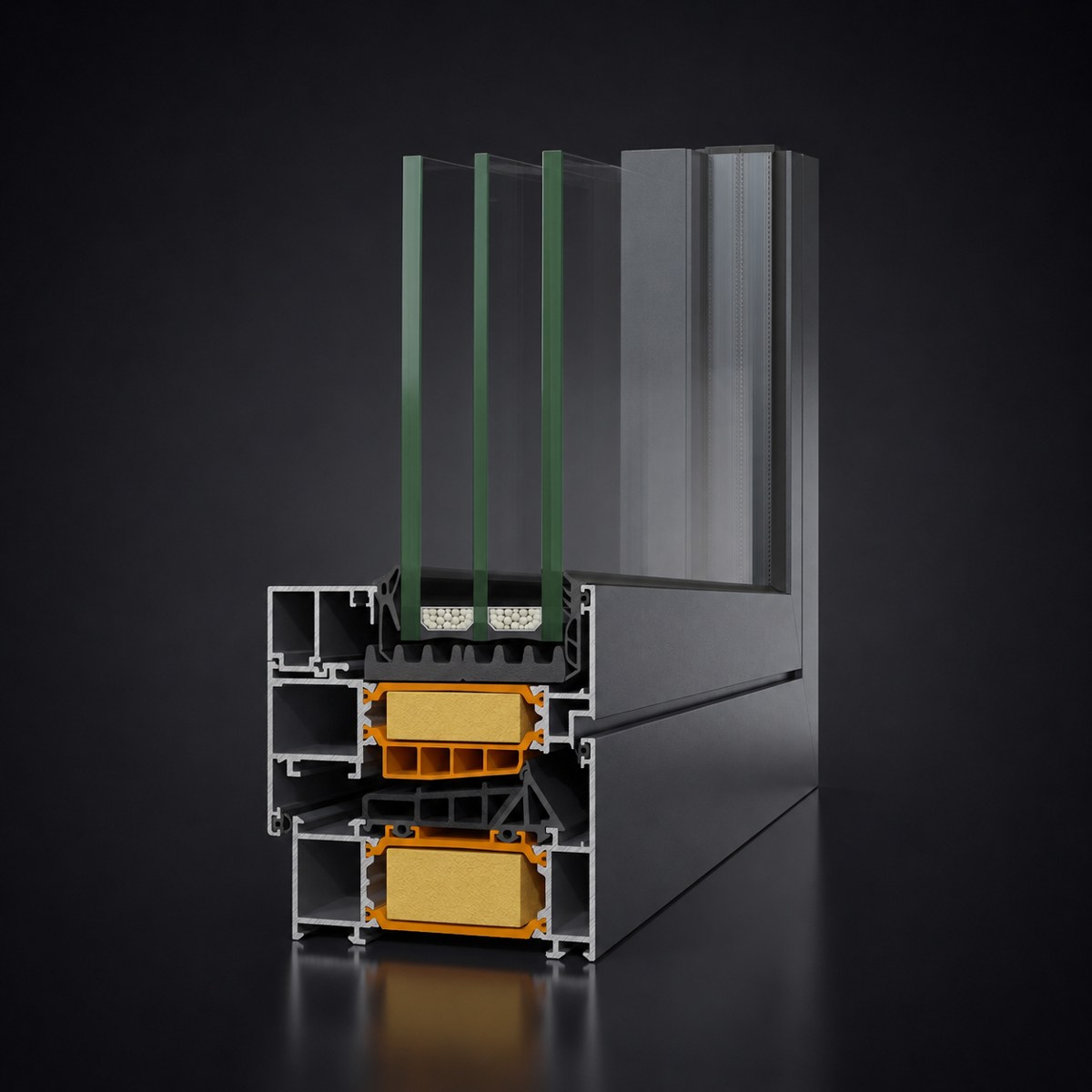

Technical characteristics

Visible aluminum face width93 mm

Frame width91 mm

Frame height61 mm

Sash width99 mm

Sash height73 mm

Max. sash weight150 kg

Glazing37 – 81 mm

InsulationPolyamides 54 mm, Kooltherm, PE foam

Performance

Air permeability (EN 1026, EN 12207)Class 4

Watertightness (EN 1027, EN 12208)Class E1650

Wind load resistance (EN 12210, EN 12211)Class C5/B5

Burglar resistance (EN 1627-1630)RC3

Sound reduction (EN 14351, EN 717)Rw (C;Ctr) = 41 (-2;-5) dB

Thermal insulation (EN 10077-2)Uw 0.79 W/m²K*

CertificationPassive House Institute (PHI)

Similar systems

Alumil Smartia

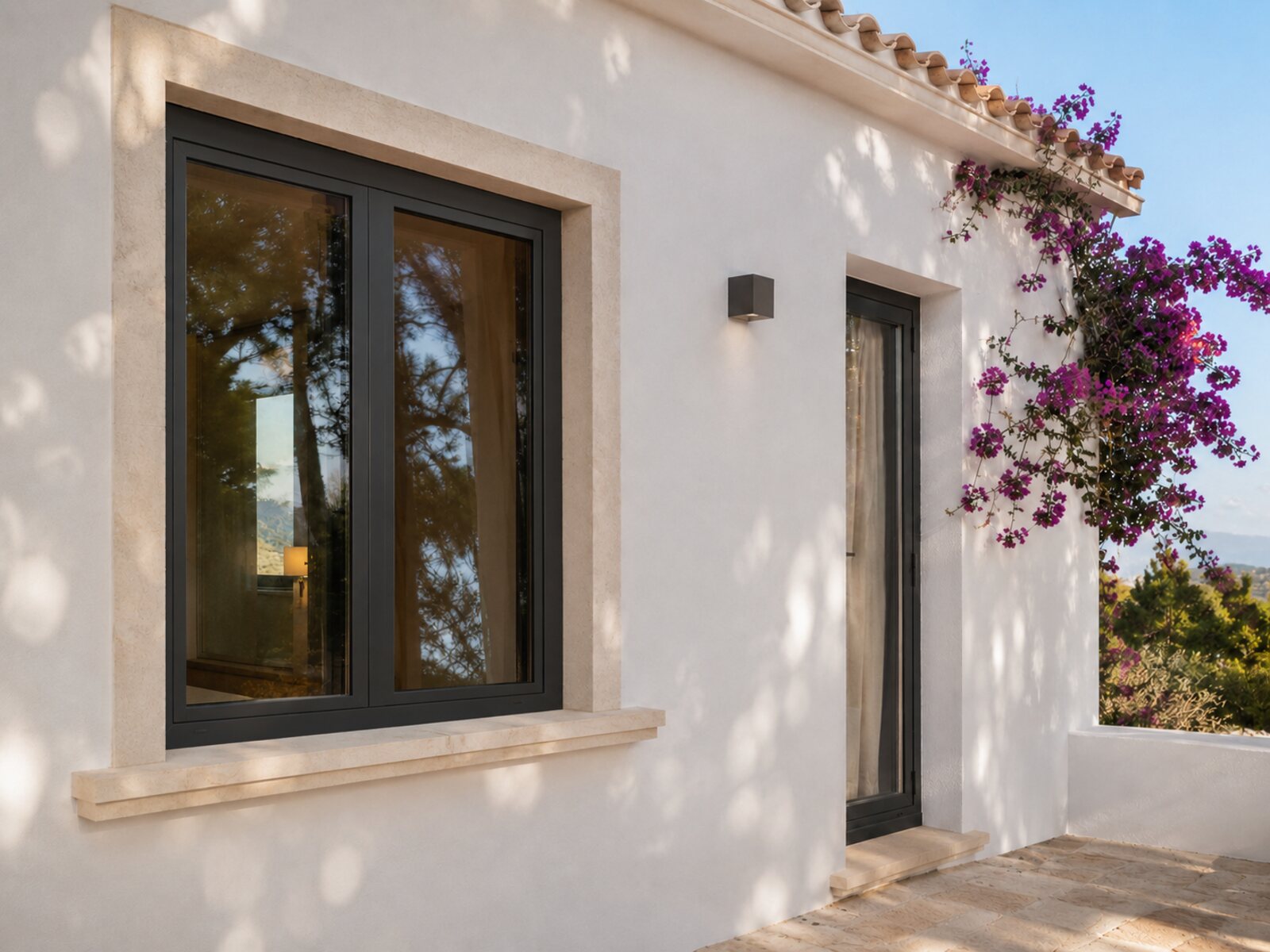

M9660

Frame depth 56 mm

Thermally insulated tilt-and-turn system for renovation projects and mild climates.

Alumil Smartia

S67

Frame depth 67 mm

Tilt-and-turn system with flat or curved profiles and high watertightness.

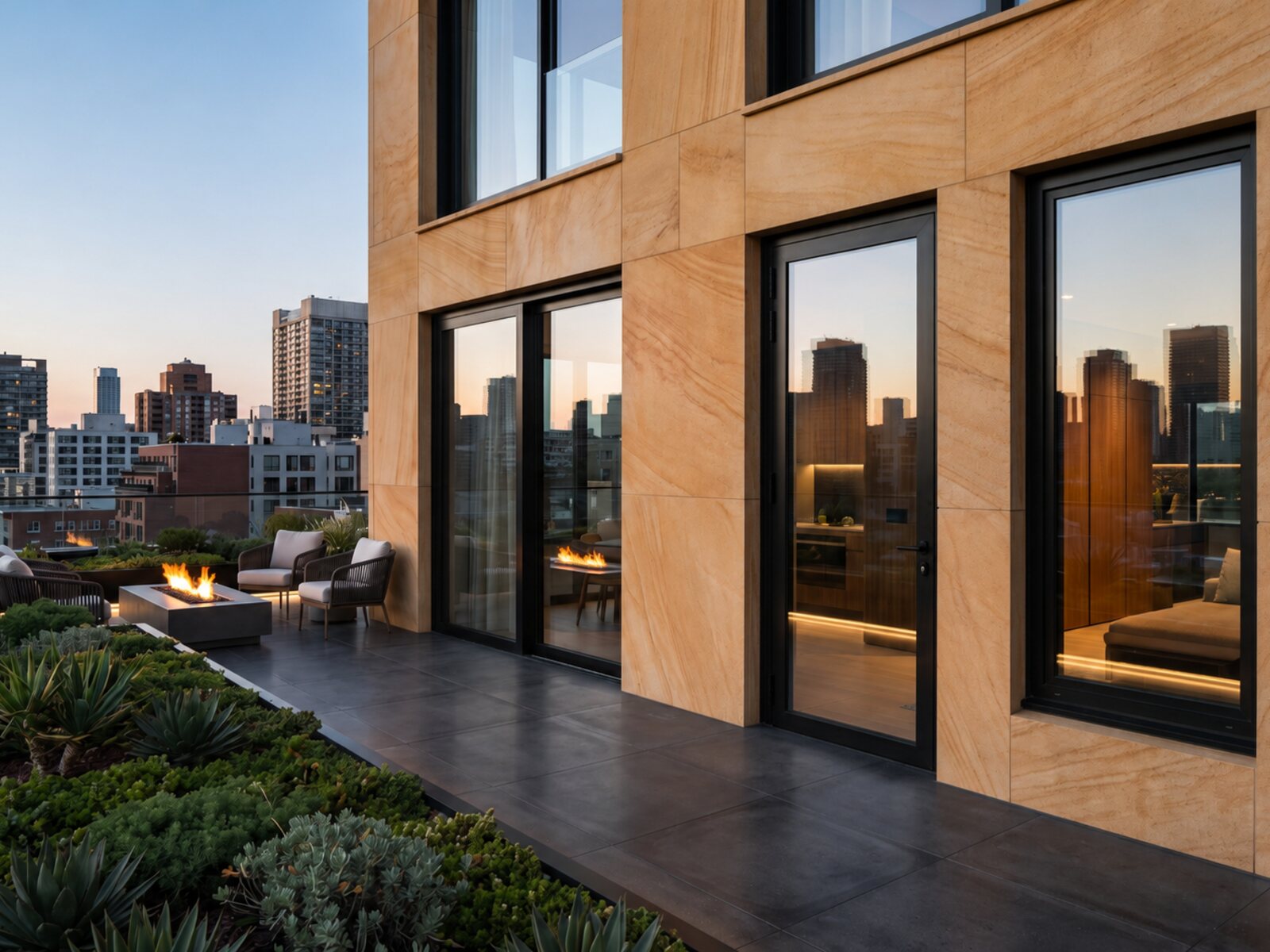

Alumil Supreme
