Alumil Smartia · Window and door systems

M9660

M9660 by Alumil

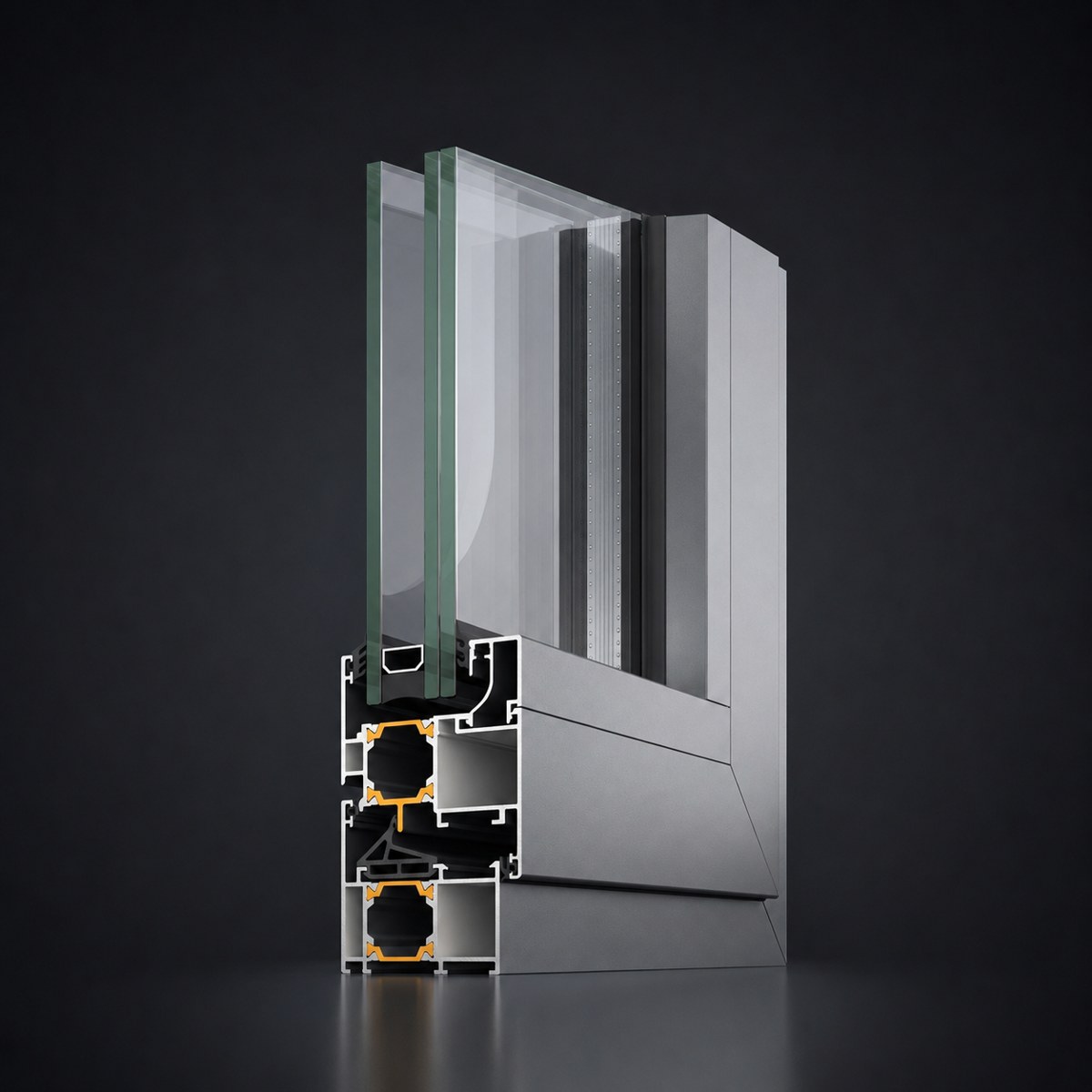

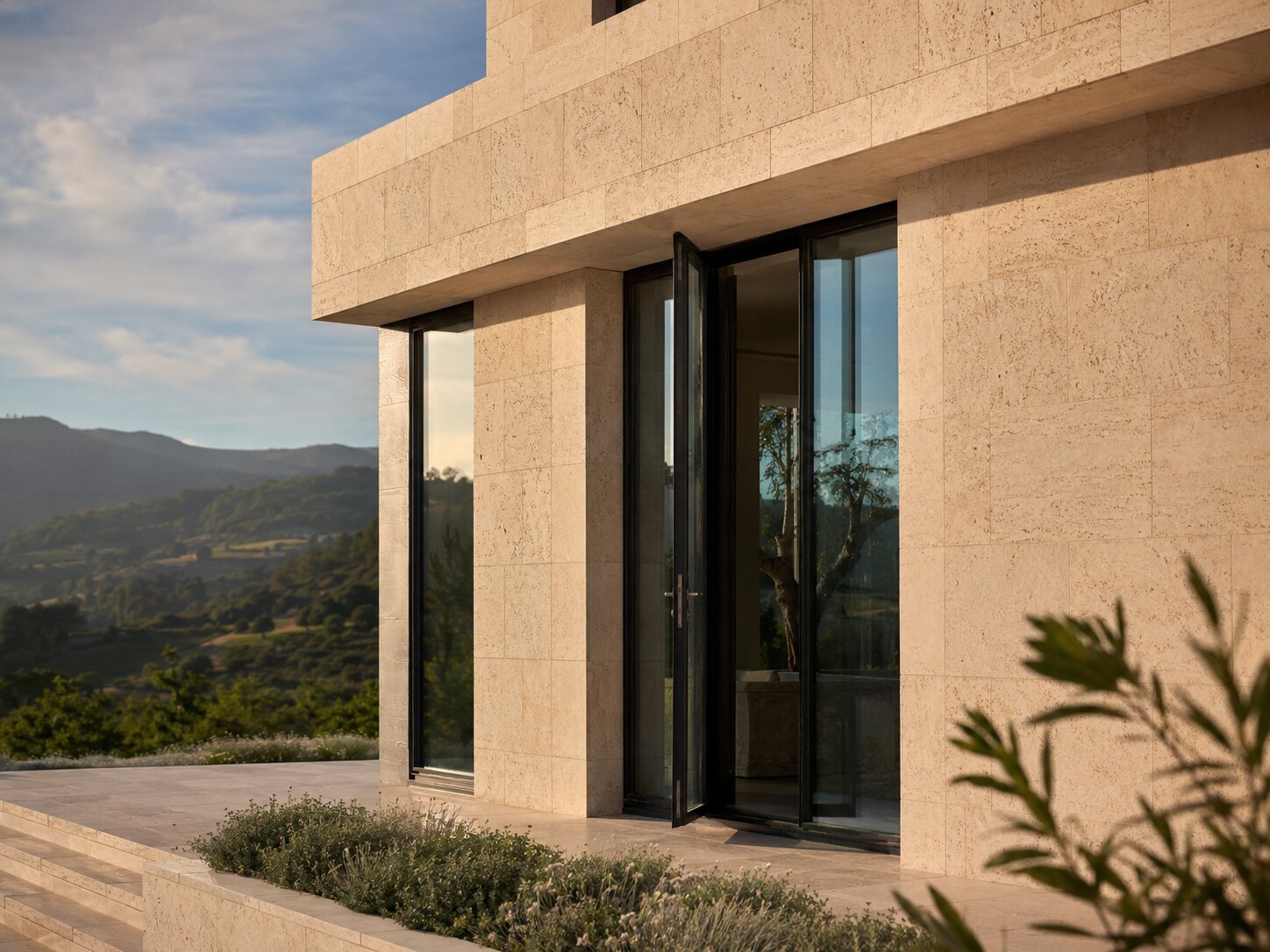

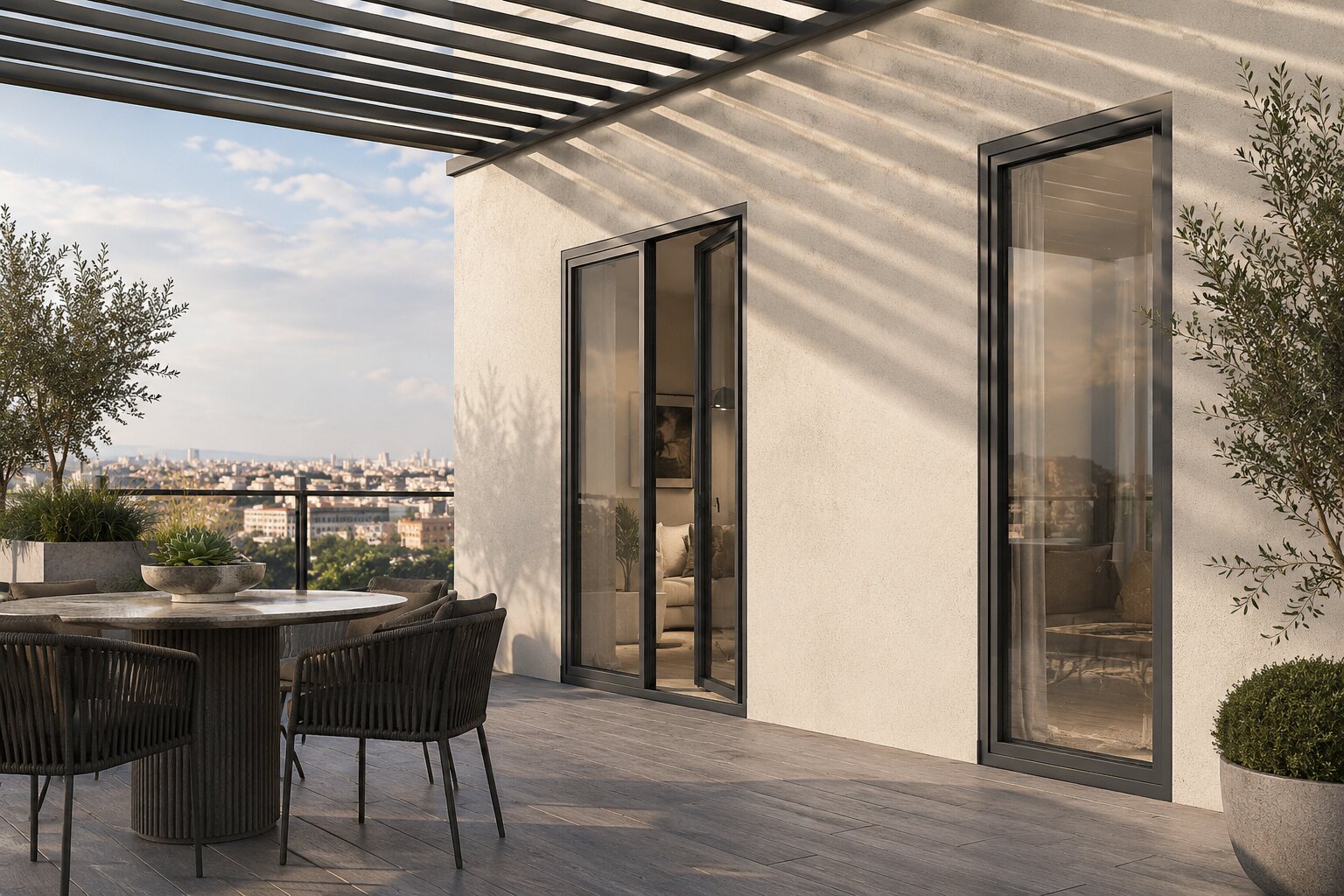

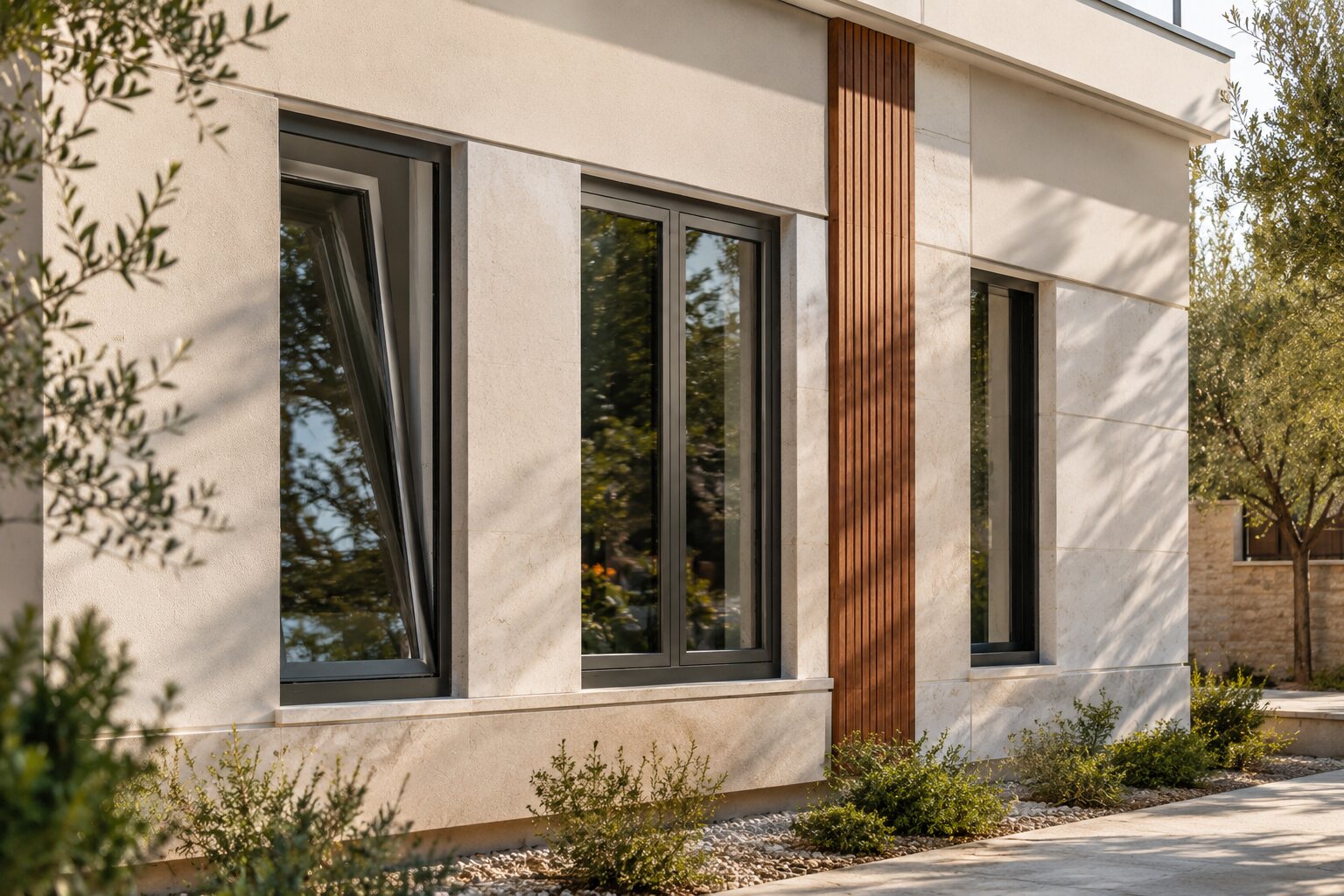

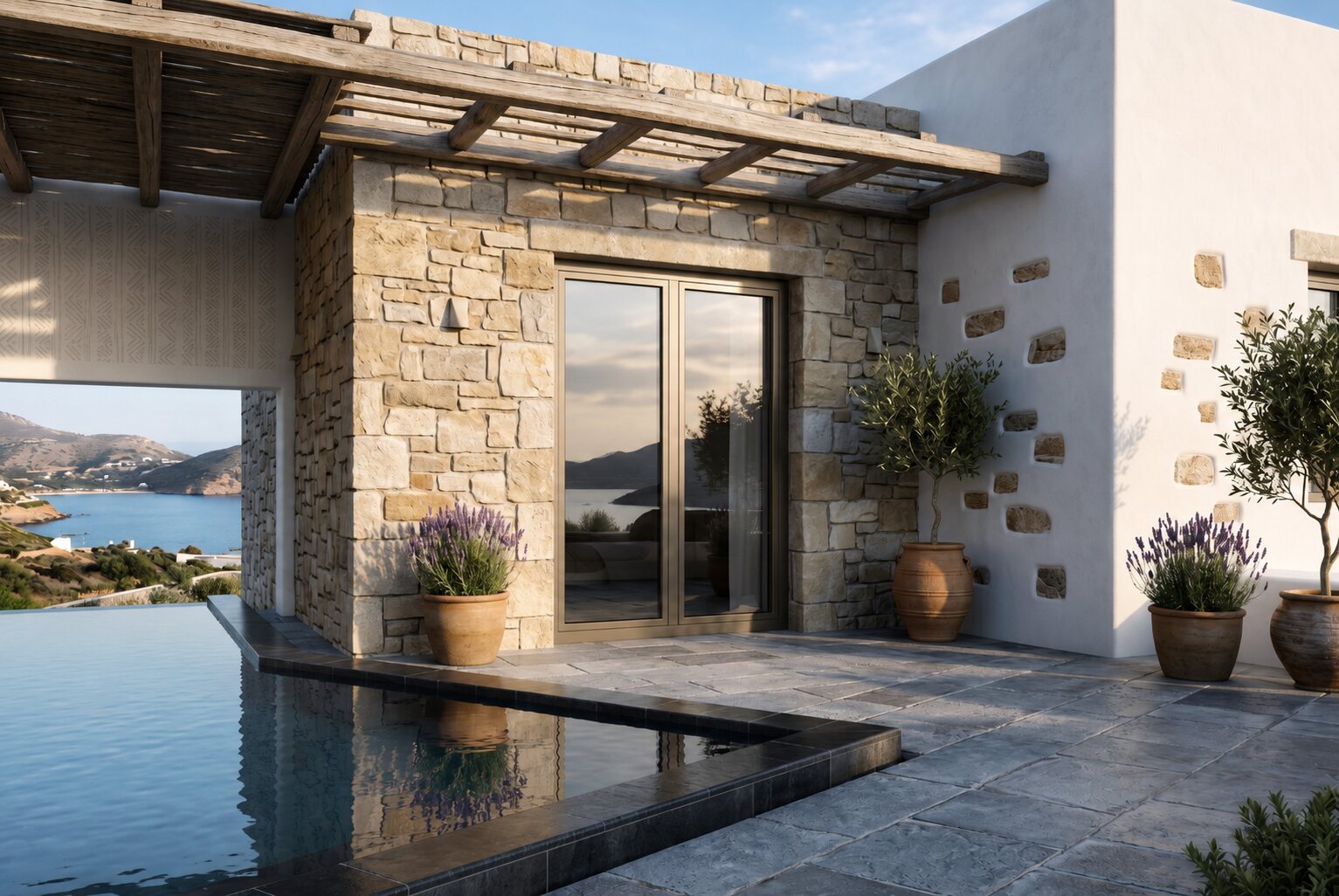

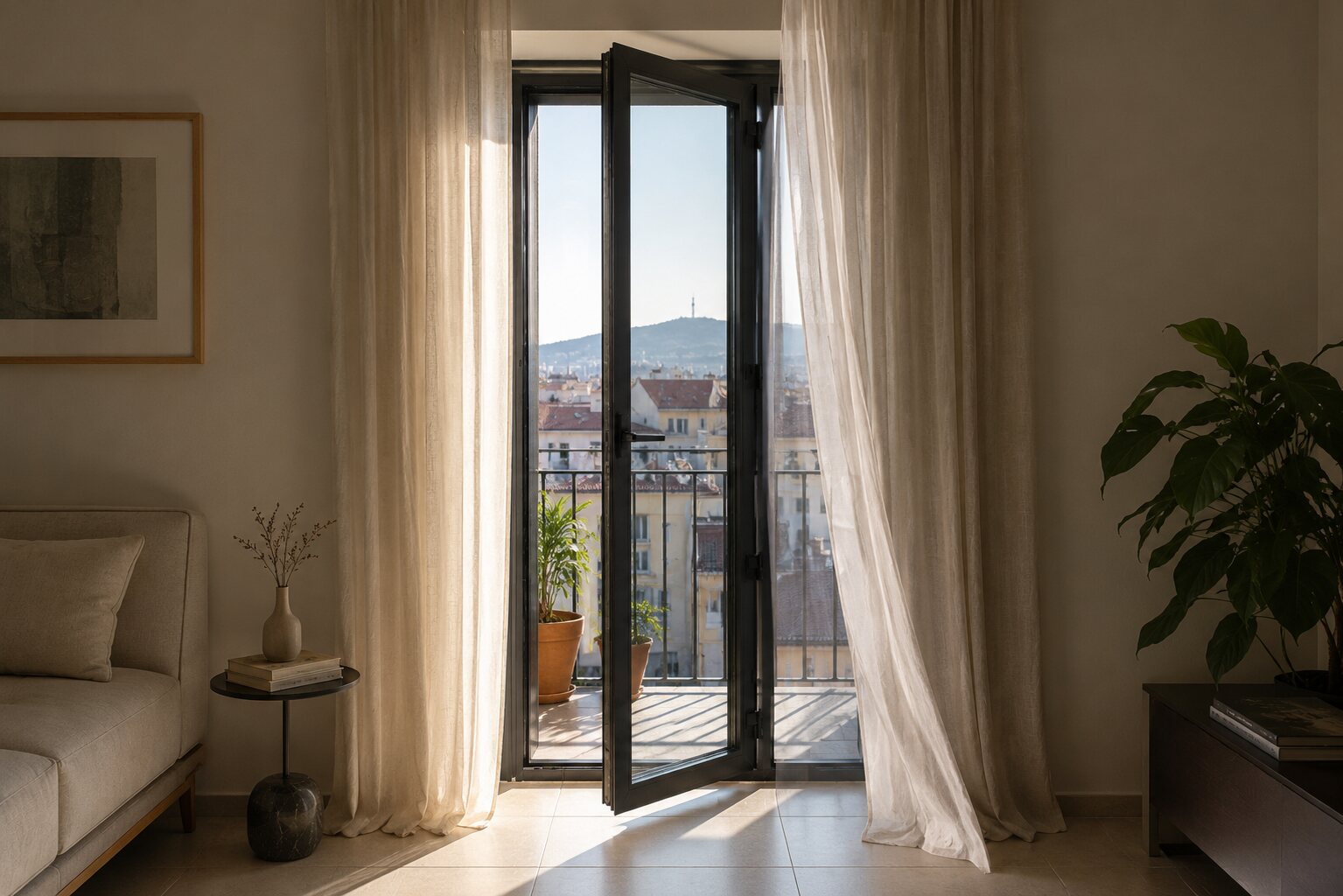

M9660 reference photo M9660 reference photo M9660 reference photo M9660 reference photo M9660 reference photo M9660 profile cross-section

About this system

A thermally insulated tilt-and-turn system for mild and warm climates, with a range of window and door configurations. M9660 is suited to renovation and cost-controlled projects that do not require a higher-insulation platform.

System typeHinged, tilt and turn
Suitable applicationsRenovation projects, warm climates
M9660 Brochure
Request a quote

Technical characteristics

Visible aluminum face width91.5 mm
Frame width56 mm
Frame height45 / 55 mm
Sash width63.5 mm
Sash height63.5 / 74 mm
Max. sash weight130 kg
Glazingup to 49 mm
InsulationPolyamides 24 mm width

Performance

Air permeability (EN 1026, EN 12207)Class 4
Watertightness (EN 1027, EN 12208)Class E1650
Wind load resistance (EN 12210, EN 12211)Class C5/B5
Burglar resistance (EN 1627-1630)RC2
Sound reduction (EN 14351, EN 717)Rw (C;Ctr) = 36 (-1;-4) dB
Thermal insulation (EN 10077-2)Uf 1.8 – 2.5 W/m²K
