Alumil Supreme · Window and door systems

S77

Name: Alumil S77
Brand: Alumil
SKU: S77
Availability: InStock

About this system

A thermally insulated hinged system with flat profiles, tested watertightness and sound reduction. Available configurations include a concealed sash and a low threshold for accessible entrances. S77 is certified for the US market.

System typeHinged, tilt and turn

Suitable applicationsHigh-performance residential and commercial projects

S77 Brochure

Request a quote

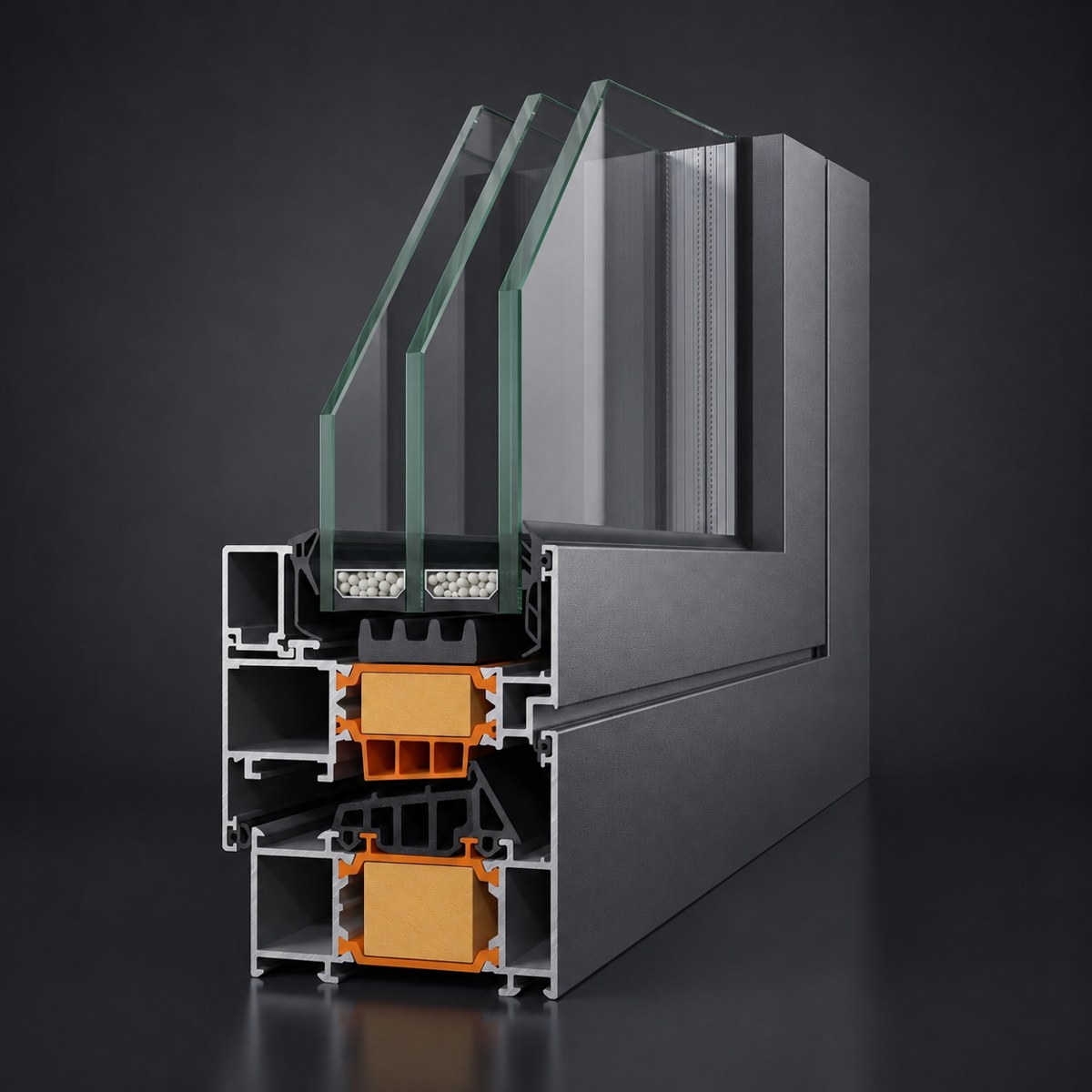

Technical characteristics

Visible aluminum face width93 mm (67 mm concealed sash)

Frame width77 mm

Frame height61 mm

Sash width85 mm

Sash height73 mm

Max. sash weight150 kg

Glazing23 – 72 mm

InsulationPolyamides 40 mm, Kooltherm, PE foam

Performance

Air permeability (EN 1026, EN 12207)Class 4

Watertightness (EN 1027, EN 12208)Class E1500

Wind load resistance (EN 12210, EN 12211)Class C5/B5

Burglar resistance (EN 1627-1630)RC3

Sound reduction (EN 14351, EN 717)Rw (C;Ctr) = 42 (-2;-8) dB

Thermal insulation (EN 10077-2)Uw 0.95 W/m²K*
