Alumil Smartia · Curtain wall systems

M6

M6 by Alumil

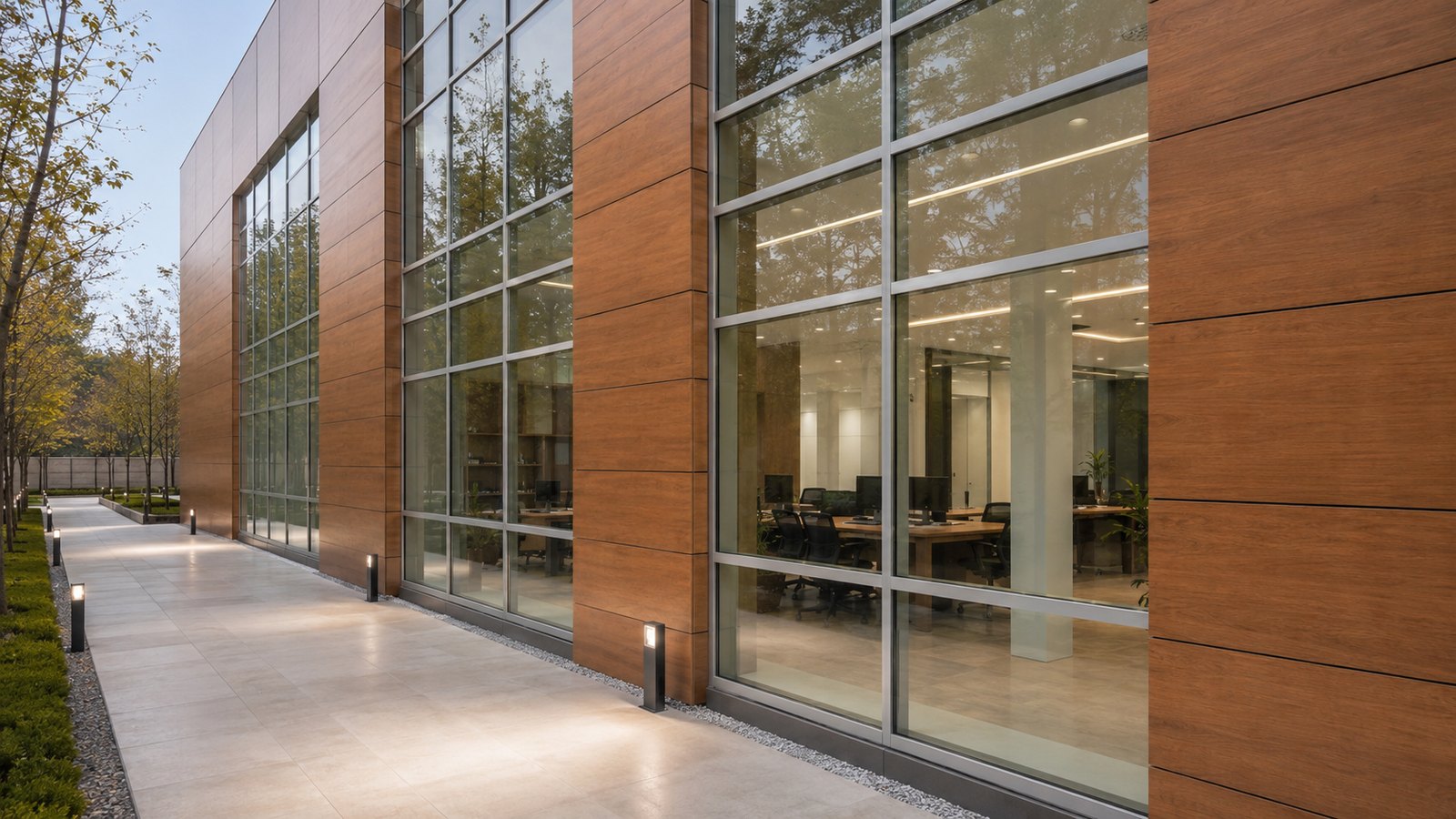

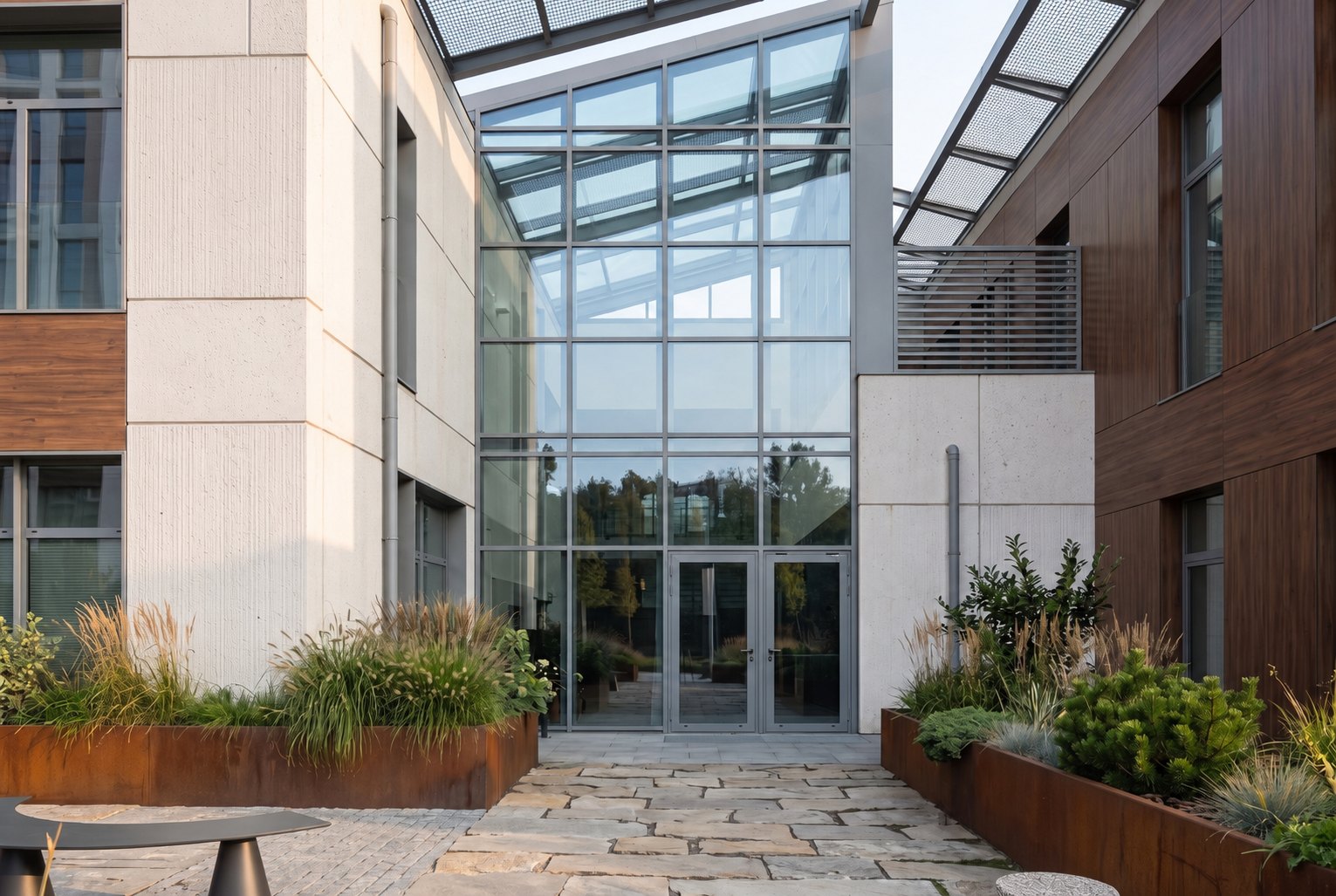

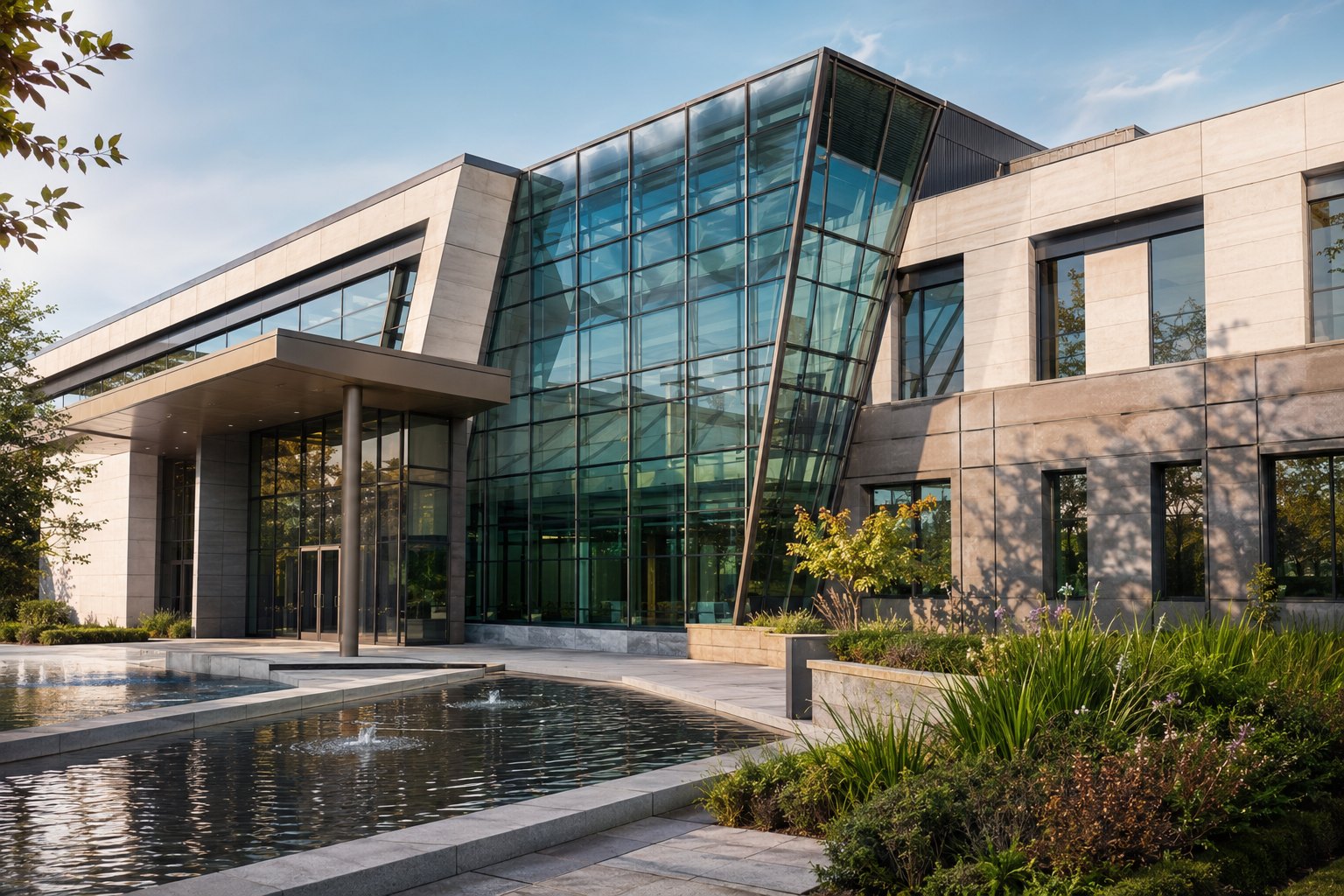

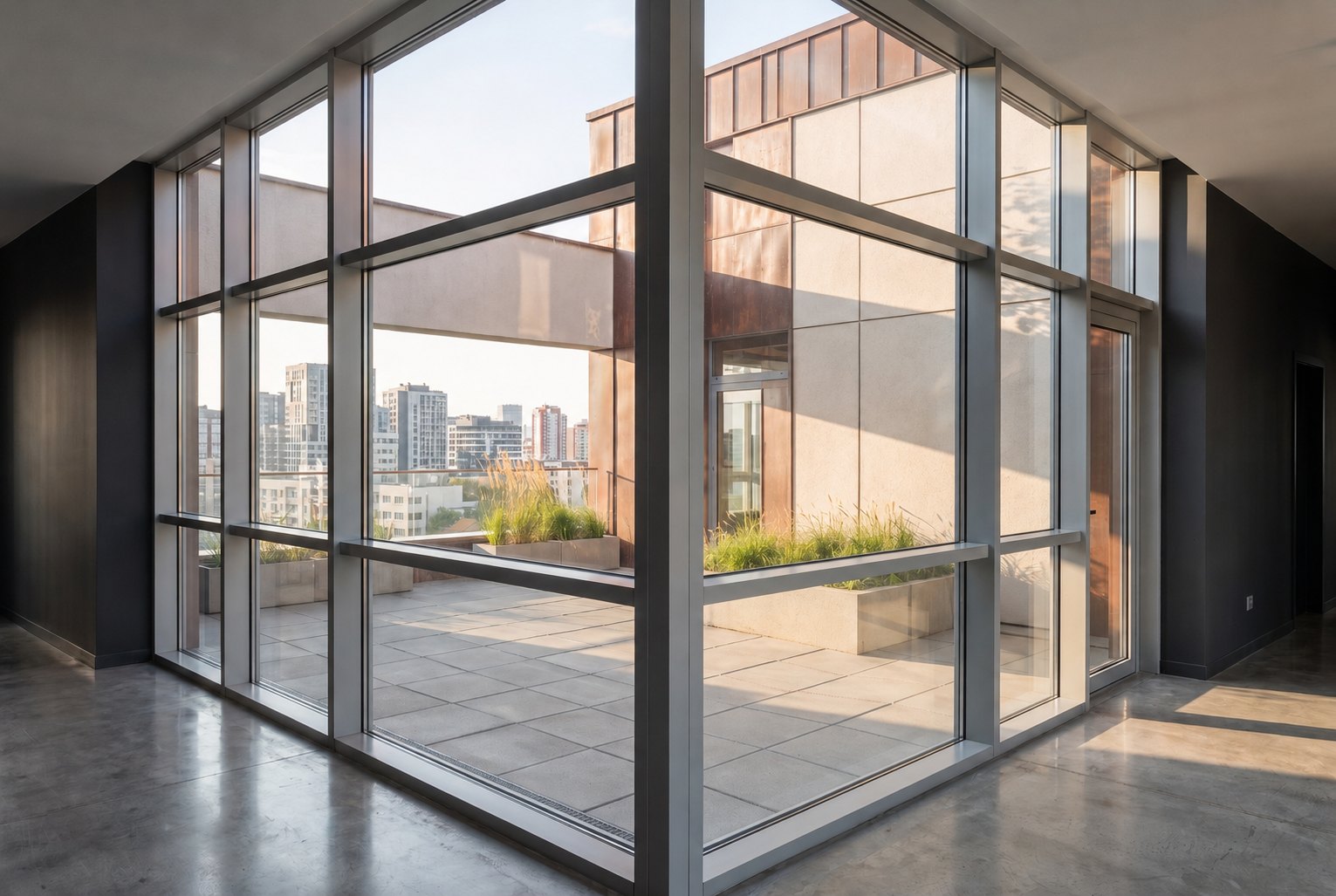

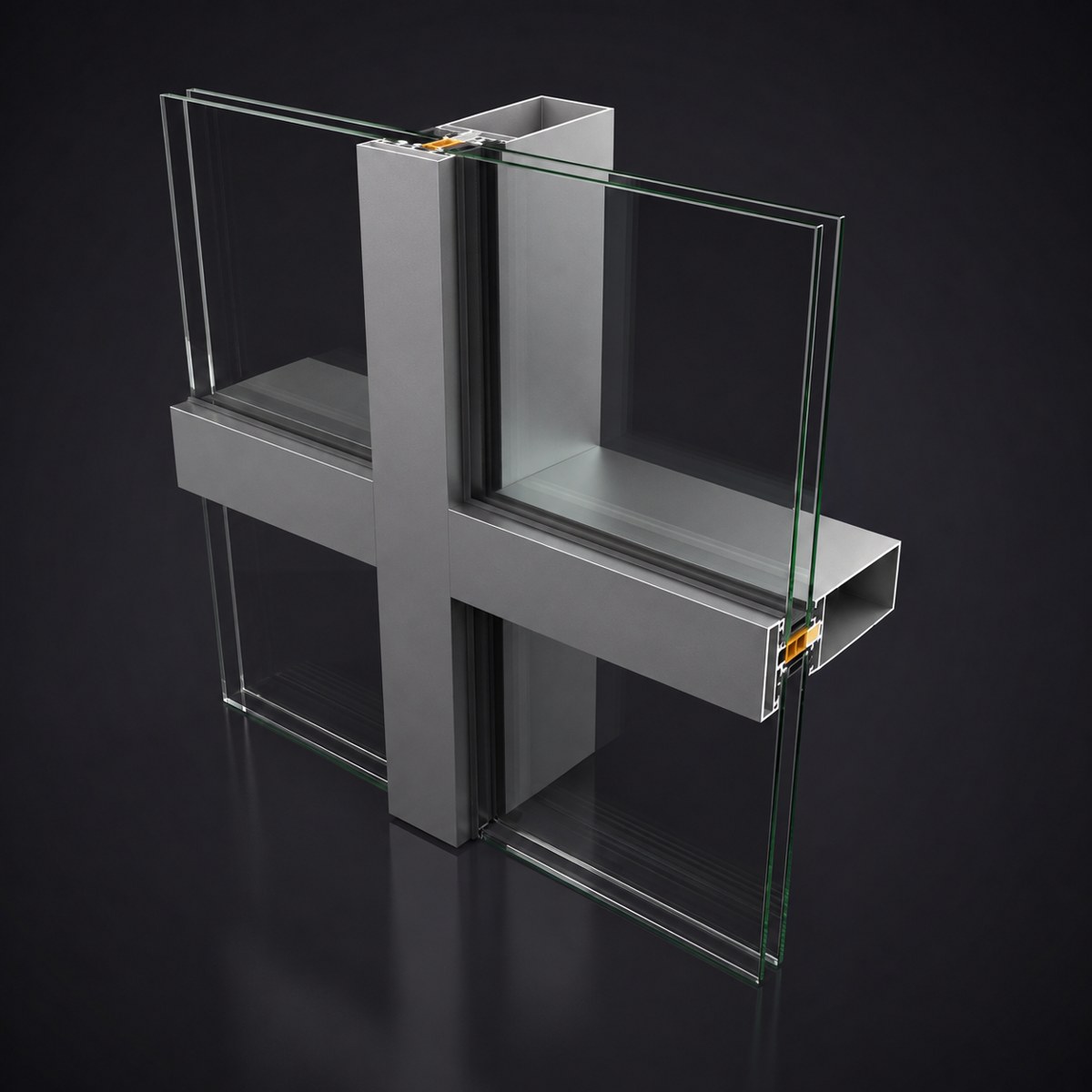

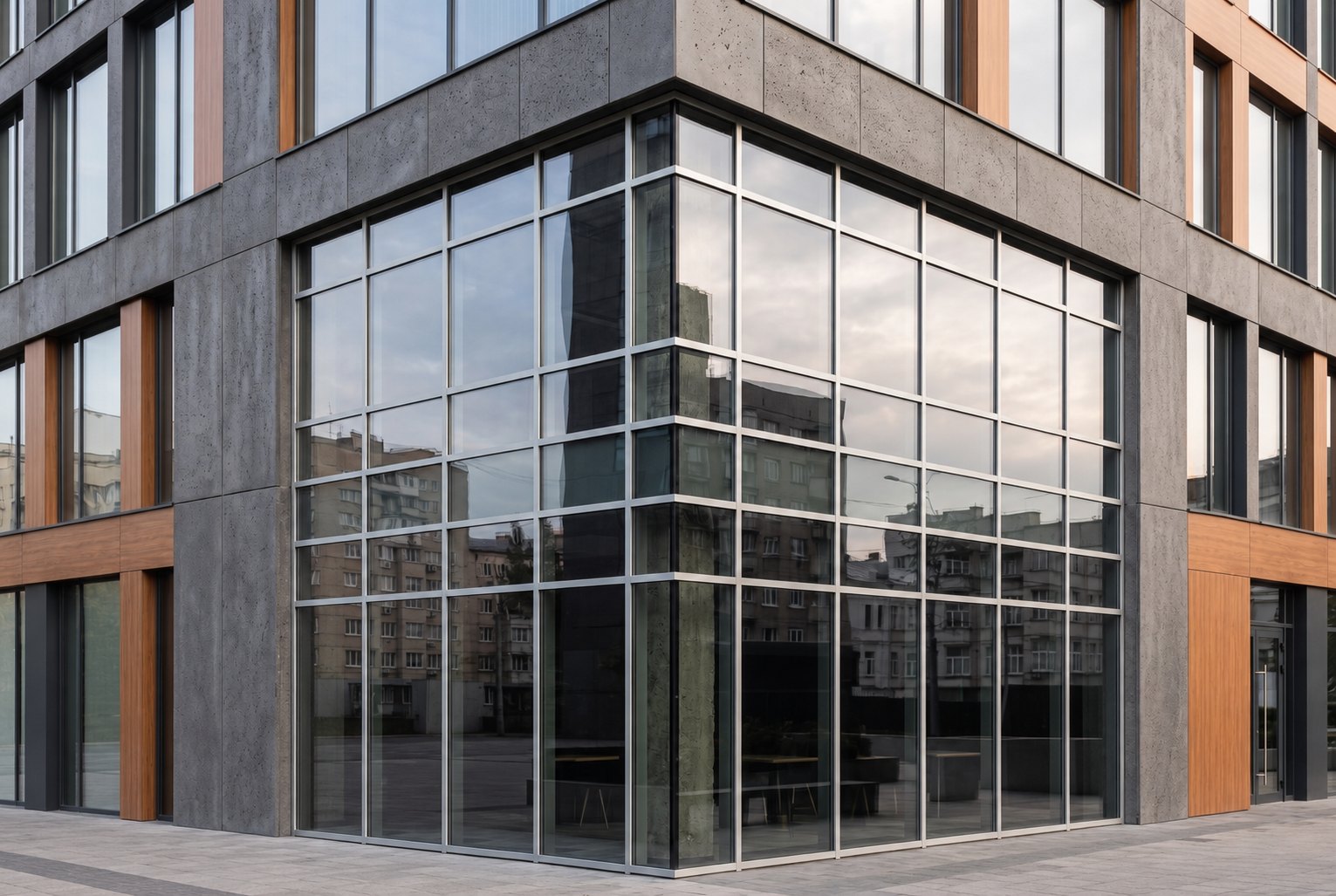

M6 reference photo M6 reference photo M6 reference photo M6 reference photo M6 reference photo M6 profile cross-section

About this system

A thermally insulated curtain wall system for large glazed surfaces and higher wind loads. M6 offers a range of vertical-profile depths and a structural-glazing version without visible exterior aluminum covers.

System typeCurtain wall
Suitable applicationsLarge glazed frames, robust construction
Request a quote

Technical characteristics

Exterior visible width55 mm
Mullion depth65 – 223 mm
Transom depth30 – 179 mm
GlazingStick type with EPDM gaskets
Glass thicknessup to 50 mm

Performance

Air permeability (EN 12152)Class A4
Watertightness (EN 12154, ENV 13050)Class R7, 450 Pa / 150 Pa
Wind load resistance (EN 13116)± 2.25 kN/m²
Thermal insulation (EN 12412-2)Uf 1.5 – 3.3 W/m²K
