Alumil Smartia · Sliding doors

S560

Name: Alumil S560
Brand: Alumil
SKU: S560
Availability: InStock

About this system

A thermally insulated system for lift-and-slide and standard sliding doors, with a narrow interlocking profile, low-threshold configurations, and options for wide openings.

System typeLift and slide, standard sliding

Suitable applicationsWide spans, renovations, hotel projects

S560 Brochure

Request a quote

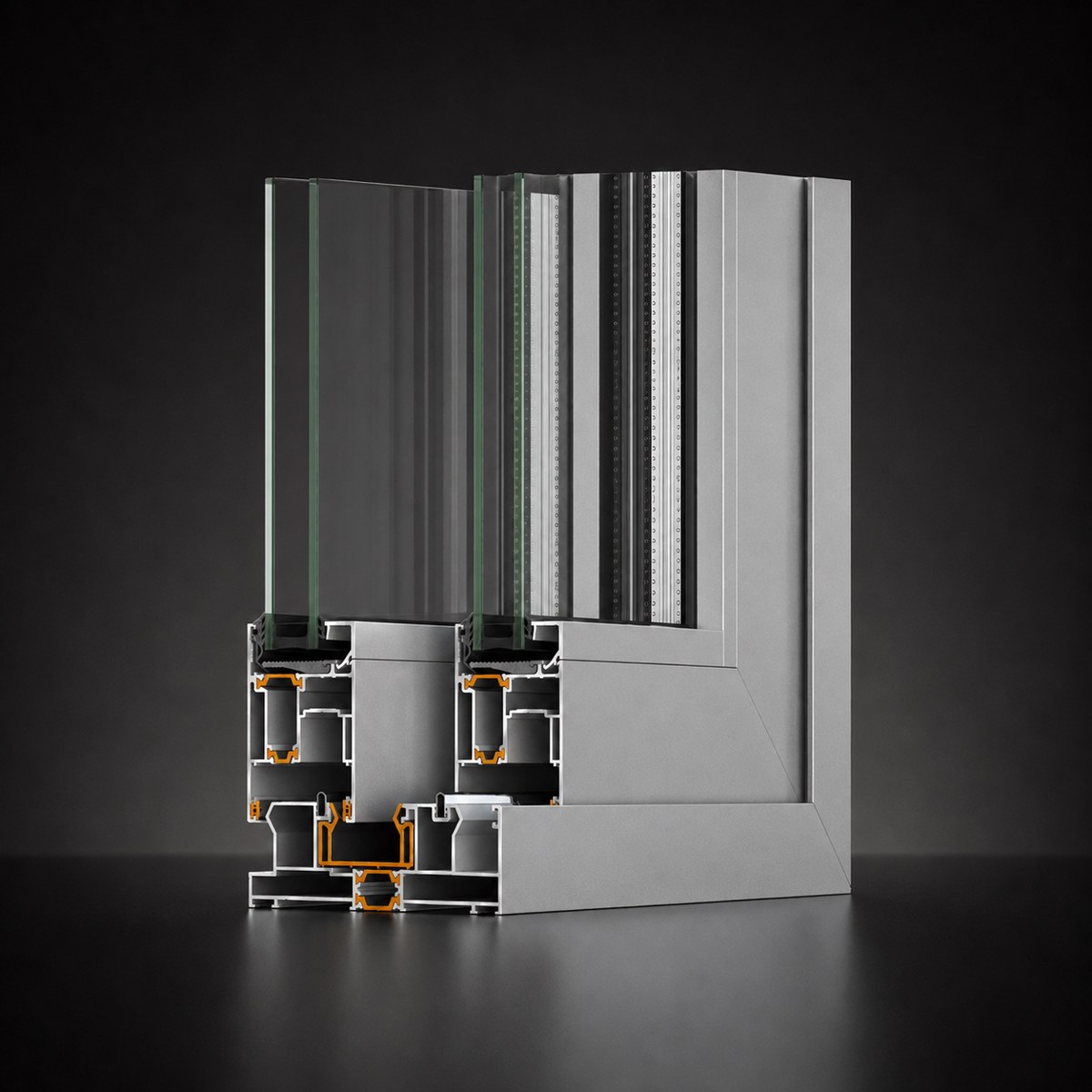

Technical characteristics

Visible aluminum face width108.5 / 122.5 mm

Frame width136 mm

Frame height31 / 45 mm

Sash width56 mm

Sash height86 / 96.5 mm

Interlocking profile width49 / 96 / 106.5 mm

Max. sash weight400 kg lift and slide / 180 kg sliding

Glazing22 – 45 mm

Thermal insulationPolyamides 24 and 16 mm, PVC, insulation foam

Performance

Air permeability (EN 1026, EN 12207)Class 4

Watertightness (EN 1027, EN 12208)Class E1200

Wind load resistance (EN 12210, EN 12211)Class C5/B5

Burglar resistance (EN 1627-1630)RC2

Sound reduction (EN 14351, EN 717)Rw (C;Ctr) = 38 (-1;-3) dB

Thermal insulation (EN 10077-2)Uf 2.3 – 6.8 W/m²K
